Name:Desk LCD Monitor Motorized Lift BLL-15.6
Model No:BLL-15.6
Type:Video Conference System
Item:Ultra-thin LCD lift with 15.6 inch screen
Color:aluminum black/silver
Function:Presentation
Material:aluminum alloy brushed
Screen Size:15.6 inch LCD screen(16:9)
Panel Thickness:5mm
Panel Size:488*88*5 mm
Box Size:468*75*605 mm
Cutout Size:471*78mm
Resolution ration:1920*1080
Interface:HDMI+USB+RS232 I/O

Product Description

Desk LCD Monitor Motorized Lift BLL-15.6

Keyword: lcd monitor lift, monitor lift, LCD lift, screen lift, retractable screen, motorized screen, pop up lcd monitor lift conference system


Introduction:

Ultra-thin Monitor Lift is designed as advance hiding equipment for audio video system.

15.6, 17.3, 18.5, 21.5 inch Full HD LCD Screen for selection to meet the requirement of different monitor size.

Controlled conveniently by touch swith or remote control, the screen could be rising up form the conference

tables automatically to present the workable screen by the lift driving.

On the other way, the screen also could be hidden under the tables automatically by the lift driving once finish using.

With double super-quite synchrous motor, rasing up and down by tank chain and mechanical gear, the lift is much smooth and quiet when working.

It is widly use in conference system,  video conference system, tv conference system, financial analyzing system,

advanced office system,lecture and training room with conference table& computer desk,etc.


Selling Point:

  1. Full aluminum alloy finish, orrosion resistant, wear-resistant,smooth surface and not easy to scratch.

  2. Ultra-thin Design, only 8.8cm width of whole product, with 5MM thickness monitor

  3. Motorized by tank chain and mechanical gear, good quality and smooth and quiet when working

  4. Hidden design to save more space and makes a modern office environment

  5. Ultra --thin monitor and lift boday, elegant design and save space

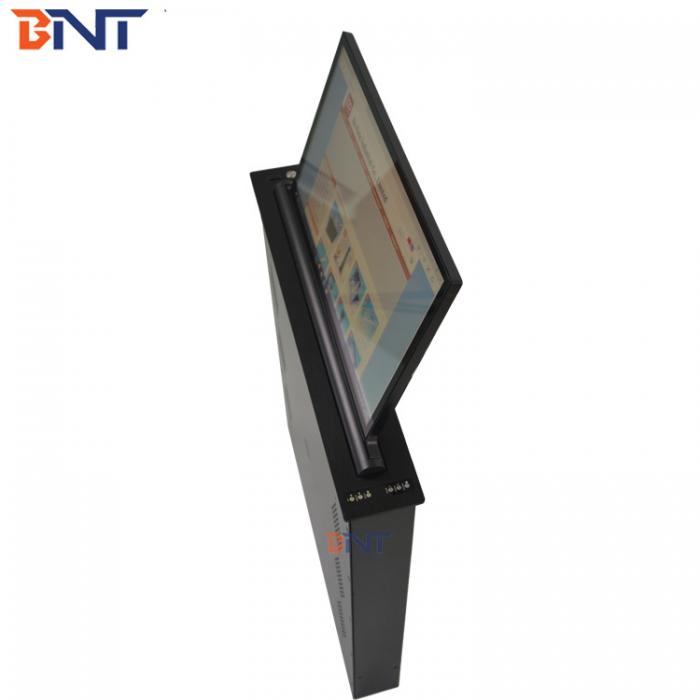

  6. 0-45 degree adjustable angle to make prefect viewing angle for users

  7. Virtually Silent working with excellent working life.

  8. works smoothly and quietly. Low noise which less than 30db

  9. with protecting function of LCD monitors by cutting the electricity off automatically

  10. Control system: Touch Switch on LCD motorizedLift panel, RF remote control, RS232 AND rs 485 central control..

  11. Power plug and voltage could be changed according to user's requirment

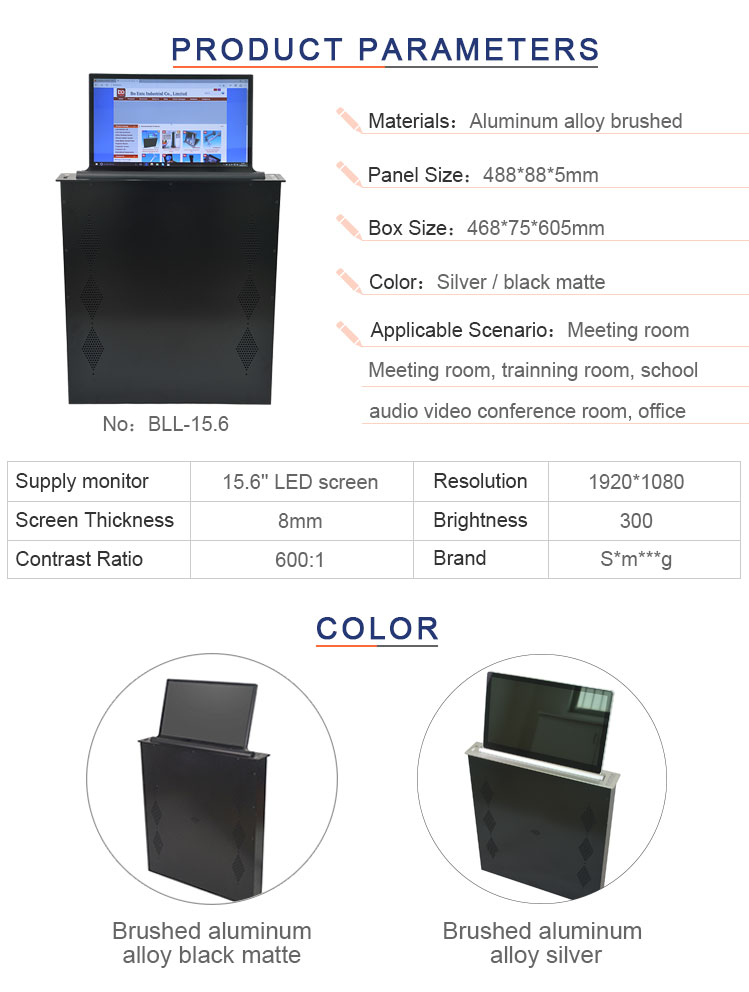

Detail Parameter:


Item Name15.6 inch LCD Monitor Lift
StyleUltra-thin LCD lift with screen
Model Number BLL-15.6
MaterialFull aluminum alloy drawing finished
ColorAluminum black/silver
Panel Dimension488*88MM
Box Size468*75*605mm
Cutout Size471*78mm
Panel Thickness5MM
Monitor15.6 FHD screen
Resolution Ratio1920*1080
Screen Overturn Angle0-45 degree
Data InterfaceVGA Input,USB Input,RS232 I/O Port
Control SystemTouch Switch,Wirless Remote,Central Contorl RS232
ApplicationHigh Class Office Conference Meeting Room

Warranty

1 Year
