Name:Electrical desk media press socket BP980
Model No::BP980
Type:Table Pop up Socket
Item:Hydraulic power pop up socket
Material:Aluminum alloy
Color:Silver/Black
Pop Up Angel:45 degree

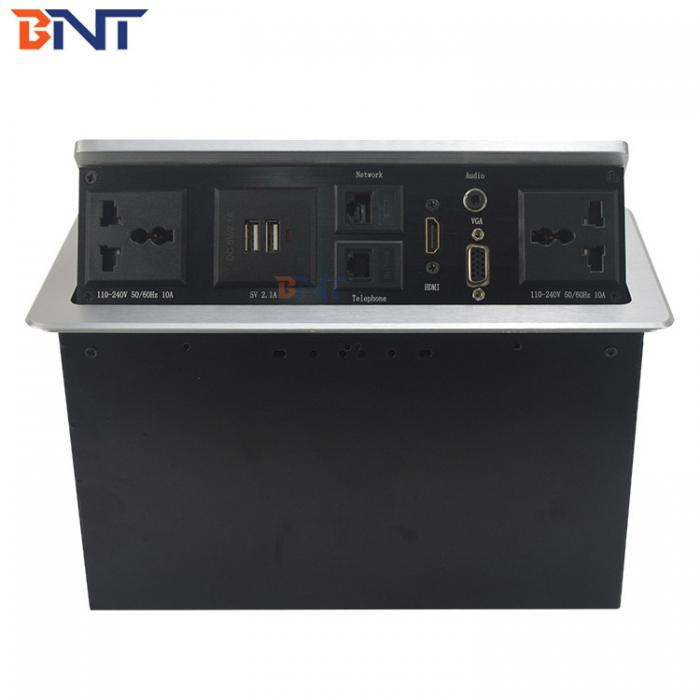

Configuration:2*Universal Power + 2*Network +2*USB Changer+1* VGA +1*3.5 Audio +1*HDMI
Panel Size:265*130mm
Box Size:252*120*143mm
Cutout Size:254*122mm
Rated voltage:110V ~ 240V AC
Rated current:10 ~ 13 Amp
Warranty:12 months

Product Description

Electrical desk media press socket BP980

Keywords: desktop socket, tabletop socket, pop up socket, pop up power plug, pop up connector, pop up box, conference table socket, office furniture outlet, desktop power data outlet, desktop outlet, table socket, desk socket, desktop power outlet,Pop up box, Gas support Type Desktop socket


Introduction:

BP series desktop socket is designed as an hydraulic pop up socket with muti-functional configuration,

it is a hidden equipment as it is mounted into the table to use and hidden on tabletop when it is not be used.

With the liquid spring,the socket could be poped up automatically by pressure.

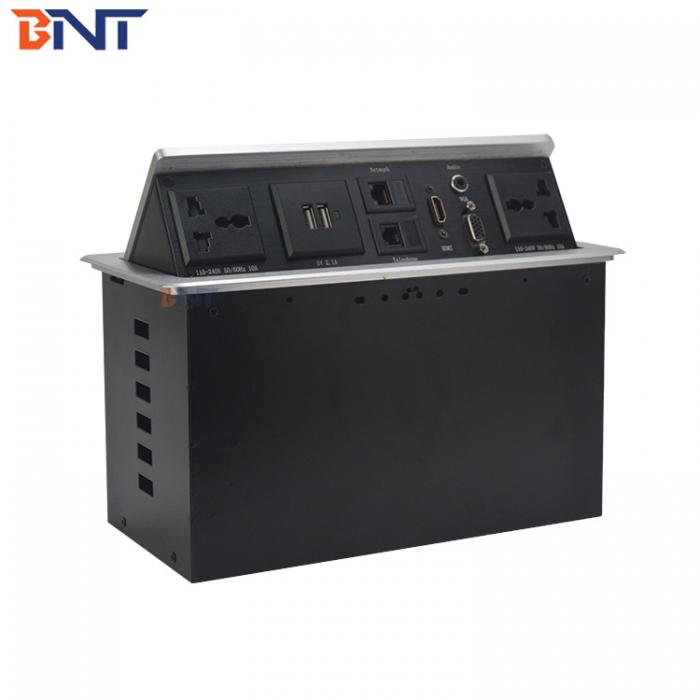

Once press the top panel, the socket will be pop up with 45 degree angle,the users can connect the socket and other connector easily,

On the other way, when finish using, press the top panel to make the panel flush with the desktop.

Besides, the bottom of BP serious is already connect with wire and the connector is design to flush with the panel of bottom,

no need to welding by the users themselves.

The configuration of socket is changeable with different moduls for different application and requirment.

It’s widely used for the office furniture, high-tier office table, conference room table AV solution, multimedia classroom,hotel room and training room, ect.


Seiling Piont:

1. Hidden design to save more space and makes a modern office environment

2. Competitive price and high quality, sliver/black color is available

3. Good quality aluminum alloy material, which is corrosion resistant, wear-resistant,smooth surface and not easy to scratch.

5. The modules can be customized to fit the defferent requirement of the users

6. Power plug and voltage could be changed accordingly

7. Had connect the wire and connector, no need to welding by the users themselves

8. The bottom connectors are flush with the bottom panel, more convenient to use

8. Easy installation, just cut out a square hole on the table and install the socket accordingly.

9. with bottom case or without bottom  case is optional for the users

10. CE approval

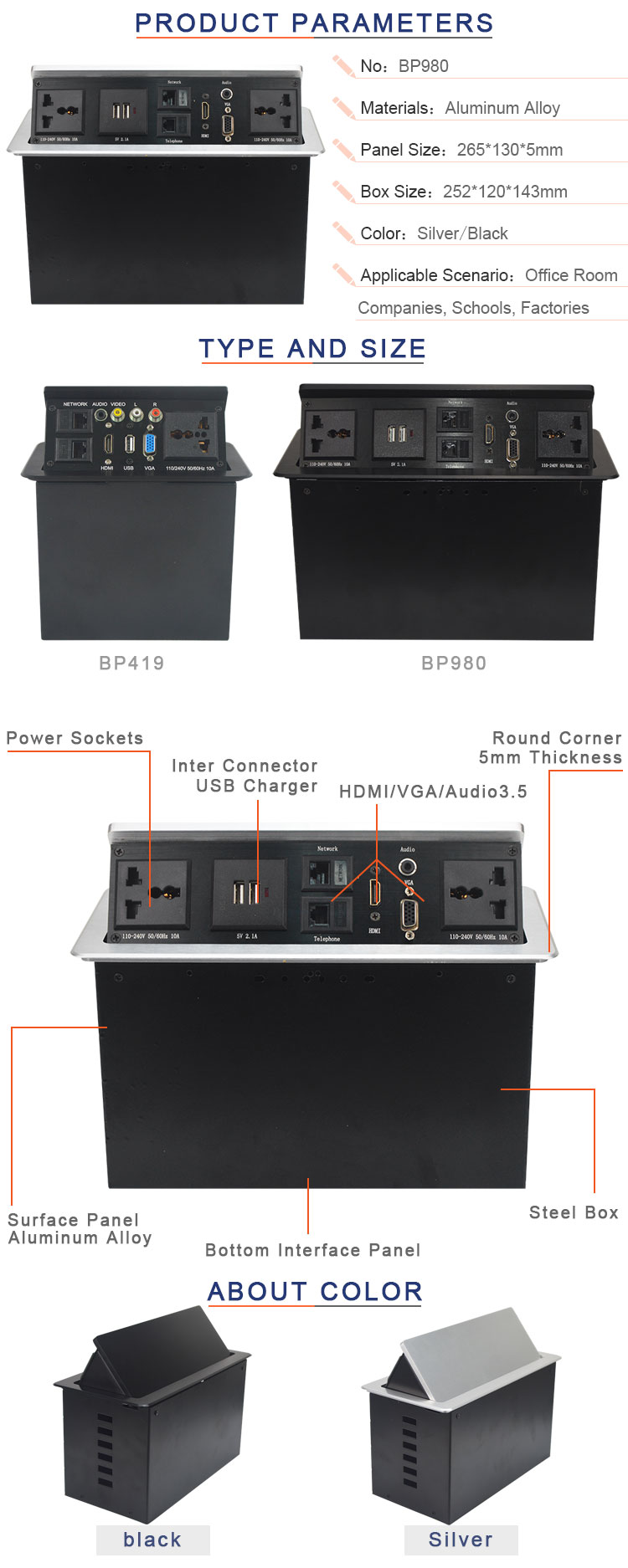

Detail Parameter:


Model No.BP980
TypeTable Pop up Socket
StyleHydraulic power pop up socket
MaterialAluminum alloy
ColorSilver/Black
Configuration2*Universal Power + 2*Network +2*USB Changer+1* VGA +1*3.5 Audio +1*HDMI
Pop up angle45 degree
Panel size265*130mm
Box Size252*120*143mm
Cutout size254*122mm
Rated voltage110V ~ 240V AC
Rated current10 ~ 13 Amp
Warranty12 month
