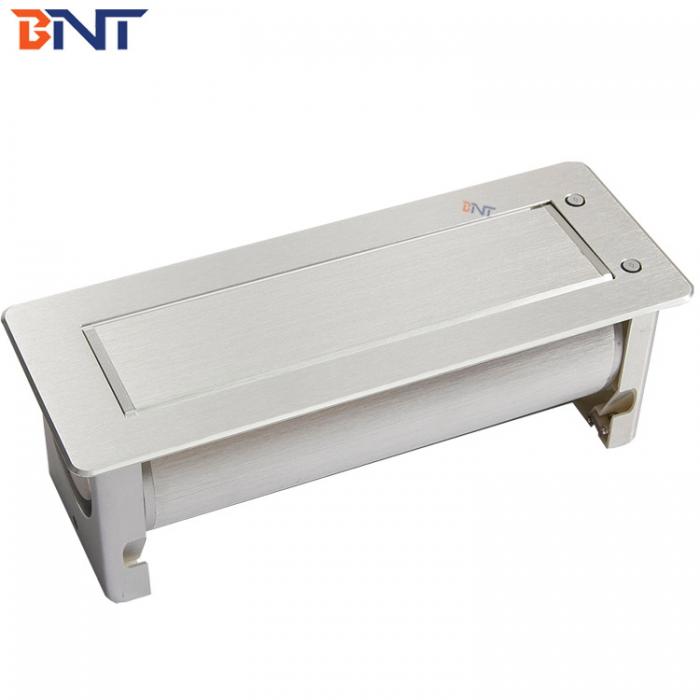

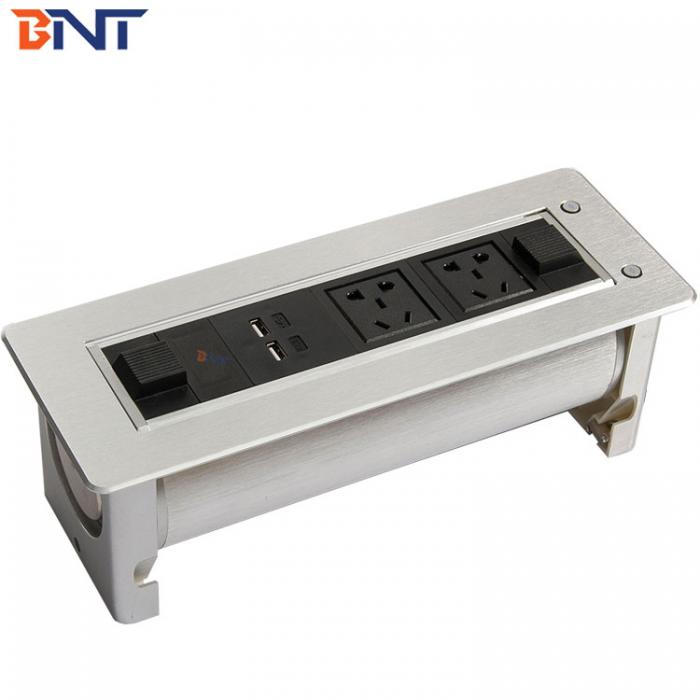

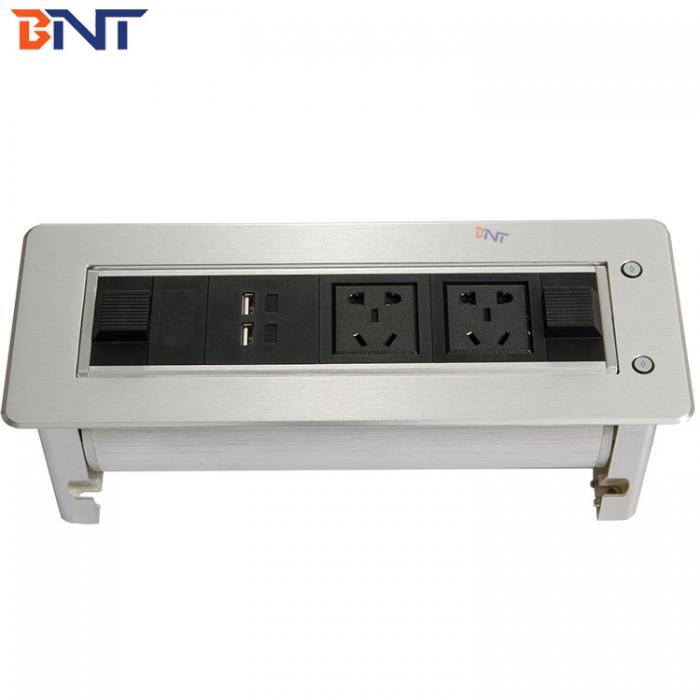

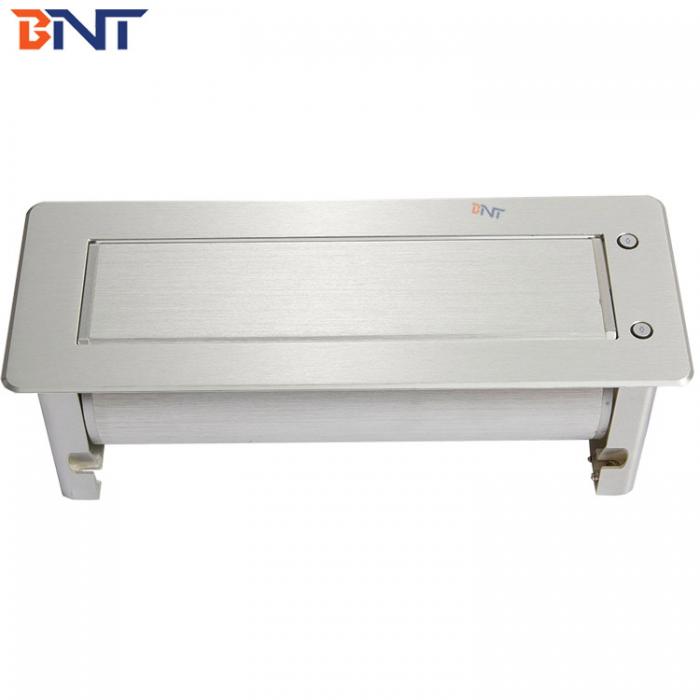

Name:Table flip up power data jack EK6301
Model No:EK6301
Type:Table Flip up Socket
Item:Tabletop hidden motorized rotating power outlets
Color:Silver/Black
Material:Aluminum alloy surface panel
Rotation Type:Motorized rotate
Configuration:2*Universal power + 2*USB Charger
Panel Thinkness:3mm
Panel Size:326*110mm
Cutout Size:296*104mm
Cable length:1.5 m (Length is available from 0.3m ~ 4.0m)
Rated voltage:110V ~ 240V AC
Rated current:10 ~ 13 Amp

Product Description

Table flip up power data jack EK6301

Keywords: electrical socket, desk socket, desk outlet,table socket, tabletop socket, desktop socket, table outlet, desktop-power-socket, hidden socket, hidden-desktop-socket, motorized-desktop-socket, flip-up-socket, motorized-flip-up-socket table connector,conference table power oultlet


Introduction:

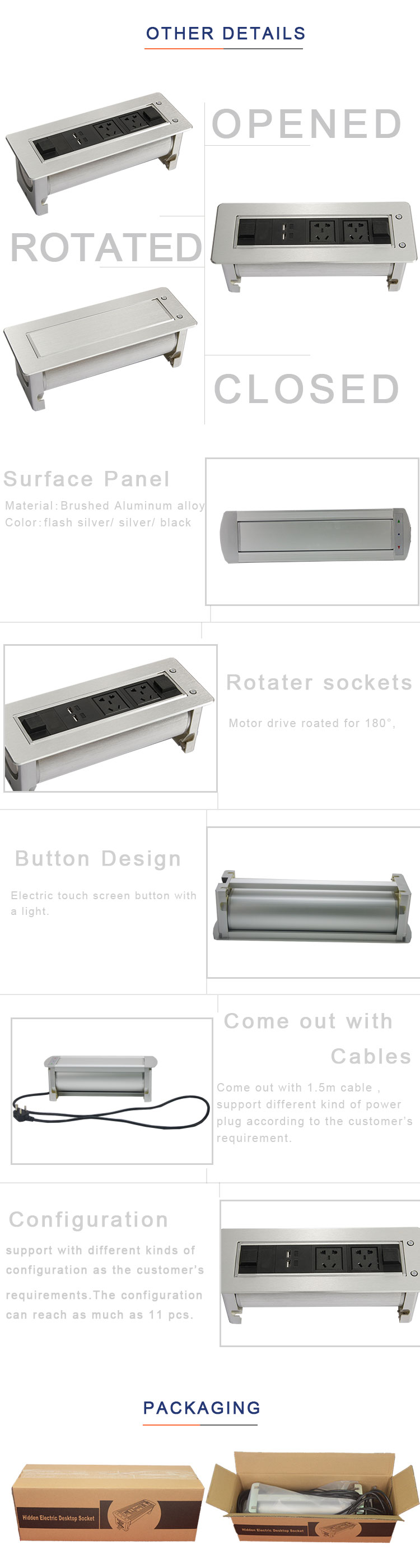

EK series desktop socket is designed as an morden motorized flip up socket with muti-functional configuration,

it is a hidden equipment for audio video solution in office furniture.To supply a fashion and modern environment

for office and meeting room, it can be hidden into the table automatically by touch switch .

When use the socket,just to touch the switch control, the socket panel will automatically 180 degree roate from the table,

then the socket is exposed to the tabletop for use. When it is unuse, it is closed by 180 degree roatation to flush with the desktop

by control the close switch.

It’s widely used for the high-tier office table, conference room table AV solution, hotel room and training room.


Seiling Piont:

1.Motorized flip up by motors,convenient to control

2.Hidden design to save more space and makes a modern office environment

3.Competitive price and high quality

4.Made by Aluminum alloy material, which is corrosion resistant, wear-resistant,smooth surface and not easy to scratch.

5.High quality 3mm panel thickness aluminum panel surface, not easy to bend

6.1PCS customized is availble, the modules can be customized as the customer's requirement

7.Cable length are available with different length to 1.0m ~ 5m

8. Easy installation, just cut out a square hole on the table and install the socket accordingly.


How to install and operation:

1. Cut out a properly square hole on the table;

2. Put the socket into the square hole, the connction cable hidden under the table;

3. The indicator light is illuminated when product power on;

4. Press the green touch button if use, the product will rotate 180 degree to the desktop.

5. Press the red touch button if unused, the product will rotate 180 degree to hide under the table.

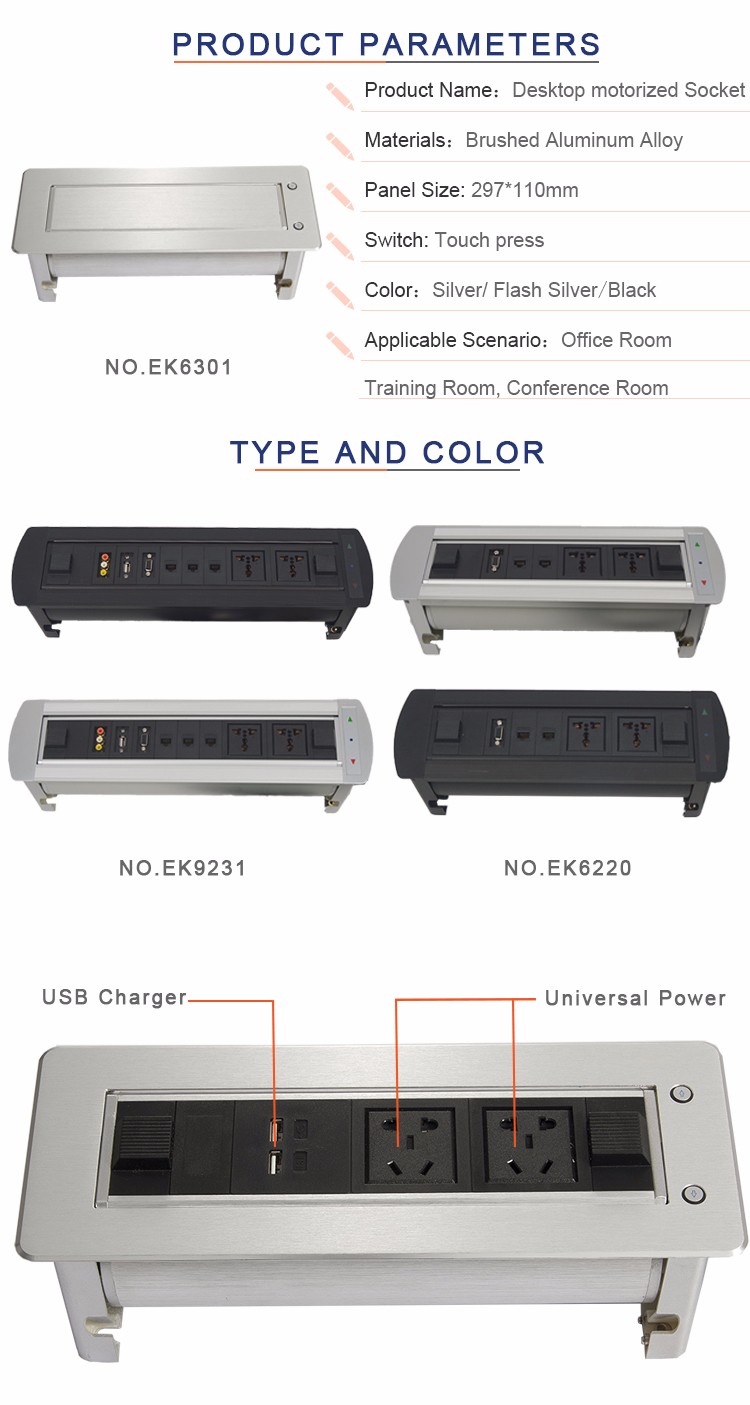

Detail Parameter:


Model No.EK6301
TypeTable Flip up Socket
StyleTabletop hidden motorized rotating power outlets
MaterialAluminum alloy
ColorSilver/Black
Rotation TypeMotorized rotating
Configuration

2* Universal power + 2*USB Charger

(could be customized)

Overturn angle180 degree
Panel size326*110mm
Panel thickness3 mm
Cutout size296*104mm
Cable length1.5 m (Length is available from 0.3m ~ 4.0m)
Rated voltage110V ~ 240V AC
Rated current10 ~ 13 Amp
Warranty12 month
