Product Center

  • Desktop LCD monitor lift BBL-24B
  • Desktop LCD monitor lift BBL-24B
  • Desktop LCD monitor lift BBL-24B
  • Desktop LCD monitor lift BBL-24B

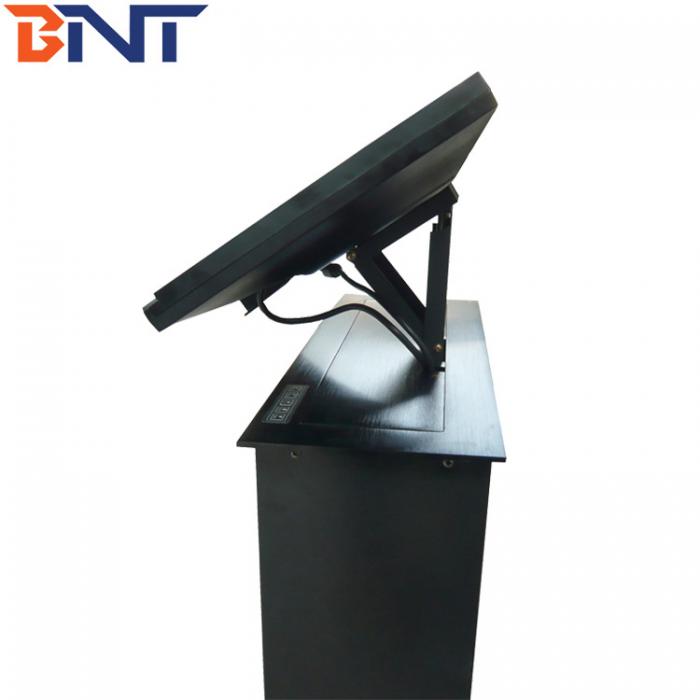

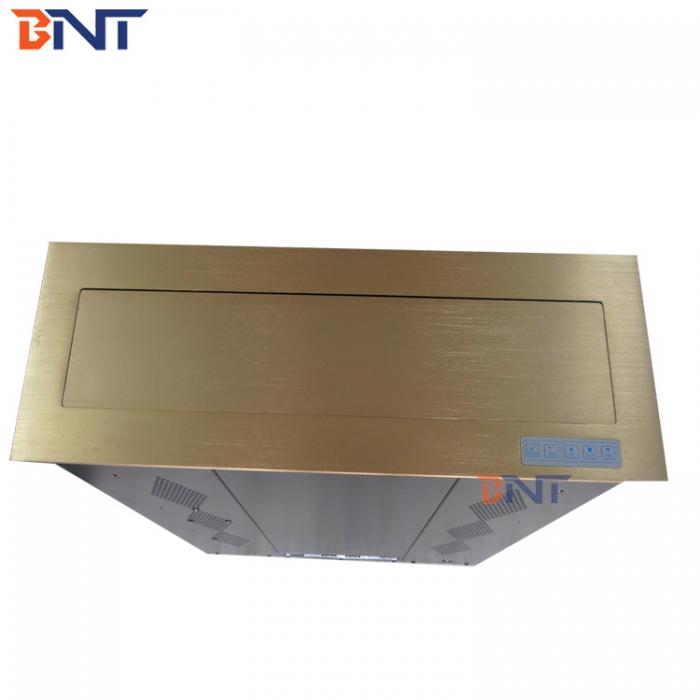

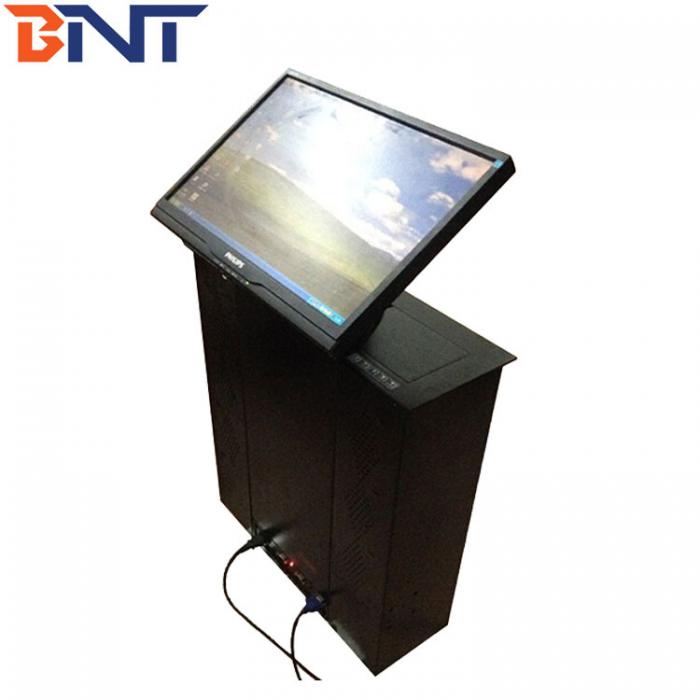

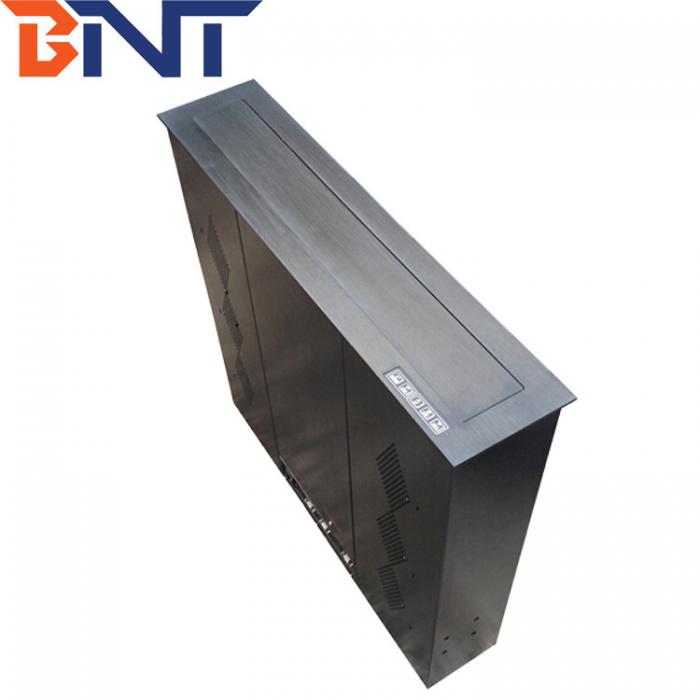

Name:Desktop LCD monitor lift BBL-24B
Model No:BBL-24B
Style:motorized lift for 17~24" All In One PC
Color:Black/ Silver
Material:Aluminum alloy
Available Monitor Space:(L)580(D)105mm
Panel Size:660*190*5mm
Panel Thickness:5 mm
Box Size:635*175*660mm
Monitor Pitch Angle:0~15 Degree
Interface:VGA/HDMI +USB+Nework+ RS232 I/O
Control System:touch switch, wireless remote , central control RS232
Application:High-class office conference meeting room
Warranty:1 year

Product Description

Desktop LCD monitor lift BBL-24B

Keyword: LCD monitor lift, automatic monitor lift, monitor lift, motorized monitor lift, LCD motorized lift, LCD screen lift, LCD monitor lifter, monitor motorized lifting equipment, LCD lifting mechanism, audio video solution, audio video conference system, meeting table, conference system, all in one PC lift, Motorized Computer Lift


Introduction:

BBL-24 series is a Motorized Monitor Lift design as a advance hiding equipment designed for audio video system

Available for 17 to 24 inch monitor, users can easily install their all in one PC(such as Ipad and other tablet PC) to the lift for use,

Motorized controll by of  touch button swith, remote control or RS232 central control ,

the screen could be rising up form the conference tables automatically to present the workable screen by the lift driving with a best view of 15 degree angle automatically(adjustable).

On the other way, they could also be hidden under the table automatically by the users' control once finish using.

With double super-quite synchrous motor, rasing up and down by tank chain and mechanical gear, the lift is much smooth and quiet when working.

It is widly use in conference system,  video conference system, tv conference system, financial analyzing system, advanced office system,lecture

and training room with conference table& computer desk,etc.



Selling Point:

  1. Full aluminum alloy finish, orrosion resistant, wear-resistant,smooth surface and not easy to scratch.

  2. Available for 17 to 24 inch monitor, ursers can install their all in one PC to the lift and connect the network for use

  3. 5MM thinkness panel

  4. Motorized by tank chain and mechanical gear, good quality and smooth and quiet when working

  5.  Controlled by two big AC motors. One controls opening and closing the panel; one controls lifting the monitor up

    and down and adjust the angles of the monitor.

  6. Hidden design to save more space and makes a modern office environment

  7. 0--15 degree adjustable angle to make prefect viewing angle for users

  8. Virtually Silent working with excellent working life.

  9. works smoothly and quietly. Low noise which less than 30db

  10. with protecting function of LCD monitors by cutting the electricity off automatically

  11. Control system: Touch Switch on LCD motorizedLift panel, RF remote control, RS232 central control..

  12. Power plug and voltage could be changed according to user's requirment



Detail Parameter:

Item ModelBBL-24B
Stylemotorized lift for 17~24" All In One PC
Material Aluminum alloy
ColorBlack/ Silver
panel size660*190*5mm
box size635*175*660mm
Available Monitor Space(L)580*(D)105mm
panel thickness5mm
Monitor Pitch Angle 0~15°
Interface VGA/HDMI +USB+Nework+ RS232 I/O
Control Systemtouch switch, wireless remote , central control RS232
ApplicationHigh-class office conference meeting room
Warranty 1 year
