Product Center

  • Electric rasing flip up monitor BF6-18.5A
  • Electric rasing flip up monitor BF6-18.5A
  • Electric rasing flip up monitor BF6-18.5A
  • Electric rasing flip up monitor BF6-18.5A
Name:Electric rasing flip up monitor BF6-18.5A
Type:Electrical flip up monitor
Model No.:BF6-18.5A
Product consitute:18.5 inch HD Screen and Keyboard and Mouse
Material:Auminum brushed finishes
Panel Size:489*386*5mm
Panel Thickness:5mm
Box Size:464*366*105mm
Screen Overturn Angle:0~105°
Interface:RS232 I/O+USB+HDMI
Color:Silver/black
Monitor size:18.5 inch HD Screen
Hands Protection:Hands Protection from Jammed
Warranty:1 year

Product Description

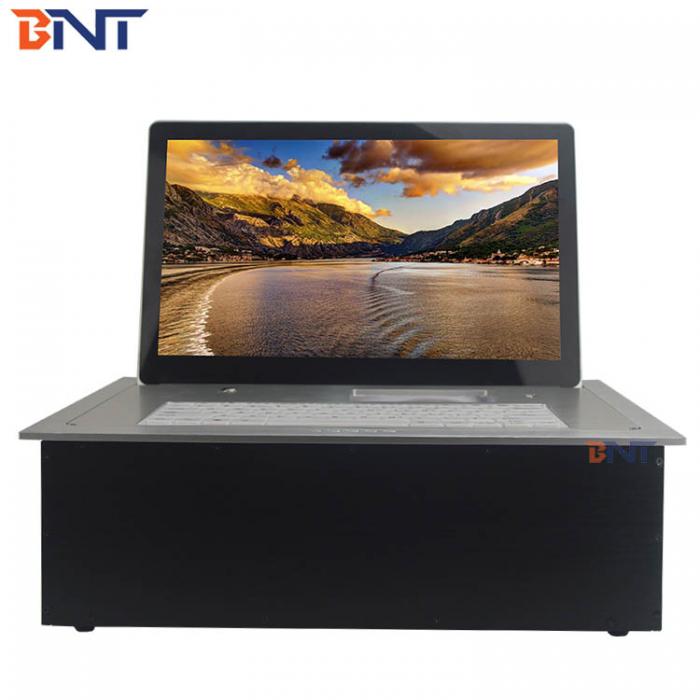

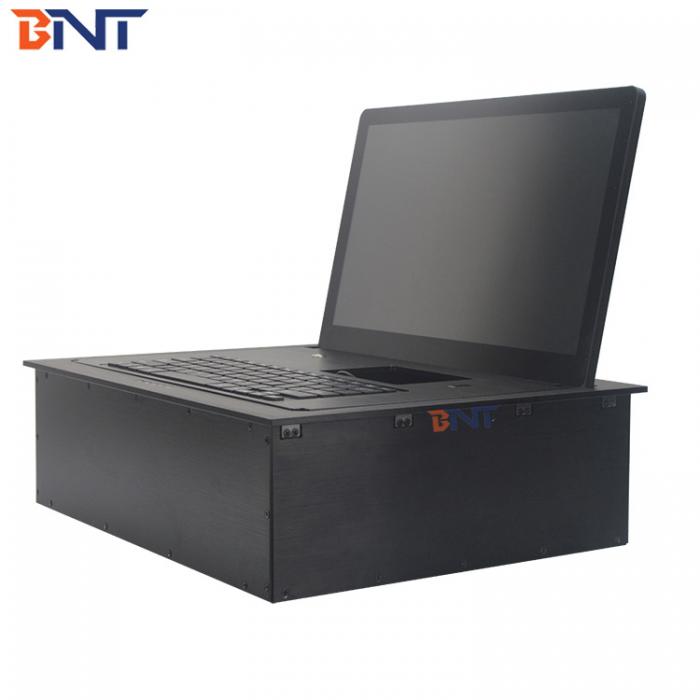

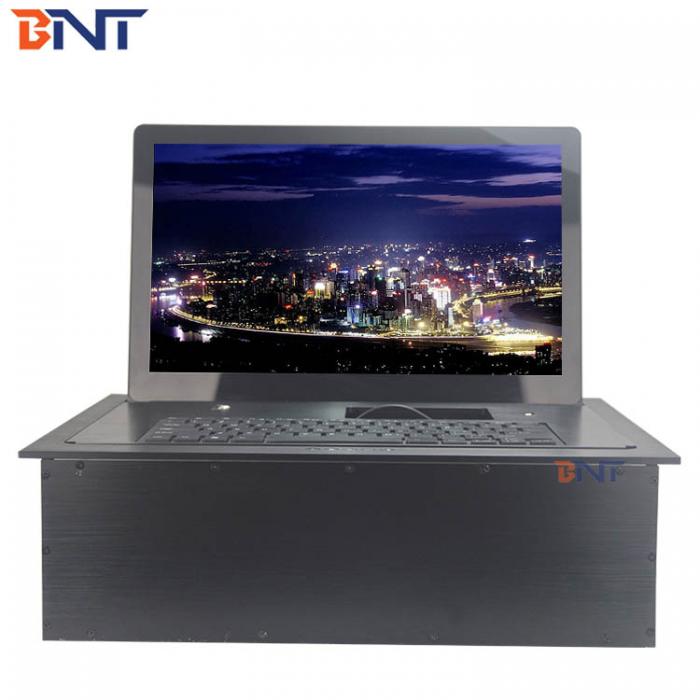

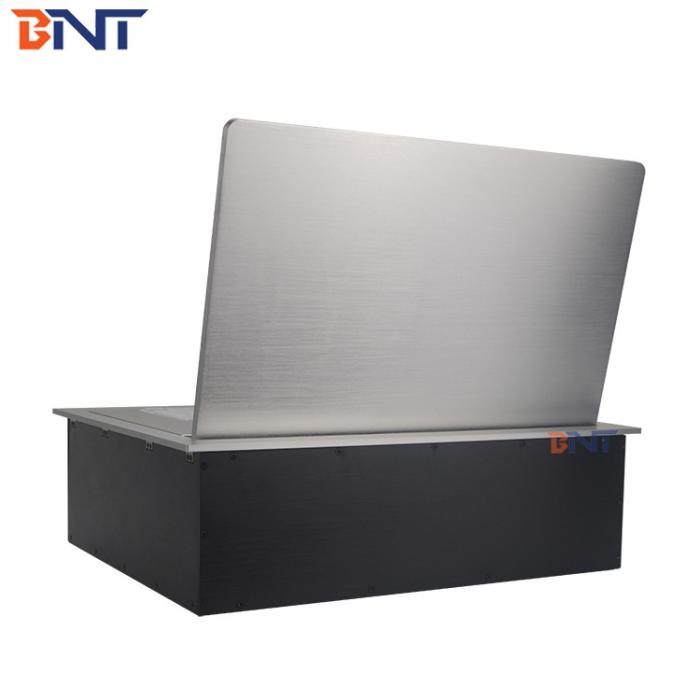

Electric rasing flip up monitor BF6-18.5A

Keyword: hidden computer, hidden monitor, flip up monitor, monitor lift, desktop computer, computer lift,  motorized monitor lift, motorized flip up monitor, monitor lift with keyboard and mouse, conference system, audio video system


Introduce:

BF6 series electrical flip up monitor is a specially design for high-class conference solutions.

It provides an efficient solution and enjoyable experience of conference communication, especially for sharing the enormous data information.It also build us the moden and energy saving surroundings of paperless conference system.



Flip up monitor with keyboard and mouse,to meet the users' requirement of information input and visit.

Press the "up" button of the LCD monitor flip up device (or use remote control), the monitor will be automatically flip up with an angle of 105 degree from the desktop. At the meanwhile, the mouse and keyboard will be rose to the same level with the desktop. The users can control easily the keyboard and mouse on the table.

When finish using,the whole product will be automatically hidden inside the table once press the "down" button.


It is widly use in conference system,  video conference system, tv conference system, financial analyzing system,

advanced office system,lecture and training room with conference table& computer desk,etc.



Selling point:

1.Ultra-thin monitor design, only 5MM thickness monitor

2.15.6,17.3,18.5 FHD Screen are available, others can be customized

3.Hidden design to save space and makes a modern office environment

4.Stable quality, reliable performance with competitive price

5.Automatic Control system: Touch Switch on LCD motorized lift panel, RF remote control, RS232 AND rs 485 central control.

6.Made by Aluminum alloy material, which is corrosion resistant, wear-resistant,smooth surface and not easy to scratch.

7.FHD screen with keyboard and mouse,supply with different data interfaces for convenient data access

8.0-105 degree monitor adjustable angle to make prefect viewing angle for users

9.Adopting shielding technology for display circuit, no magnetic interference and nonradioactive to human with environmental protection and great security during using

10.All wired circuits of monitor lift adopt standard double insulation and safety ground connection earth leakage protection, without faradism and leakage with great security.

11.Hands Protection from Jammed

12. Black and sliver color is available.

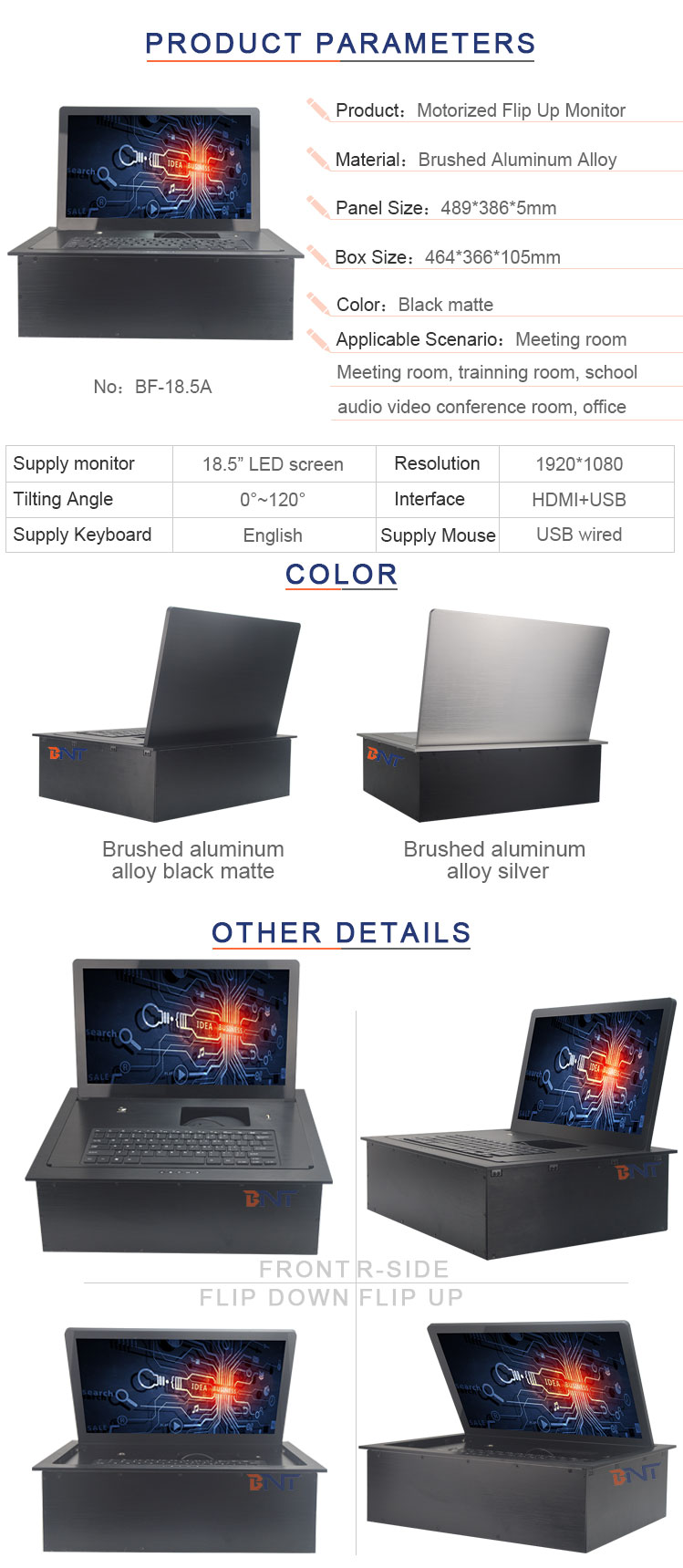

Detail Parameter:

TypeElectrical flip up monitor
Model       No.BF6-18.5A
Product  consitute18.5" FHD Screen +Keyboard+Mouse
MaterialAuminum brushed finishes
Panel Size489*386*5mm
Panel Thickness5mm
Box Size464*366*105mm
Screen Overturn Angle 0~105°
Monitor size
18.5" FHD Screen
InterfaceRS232 I/O+USB+HDMI
Color:Silver/black
Hands ProtectionHands Protection from Jammed
Warranty1 year
