Name:Table motorized LCD screen lift BML1-17
Model No::BML1-17
Item:Monitor monitor microphone lift
Type:Available for 17inch screen with microphone
Material:Aluminum alloy brushed panel
Color:Silver /Black/ Gold
Panel Dimension:540*160*5mm
Panel Thickness:5mm
Box Size:520*138*625mm
Monitor size required:403*330*38mm
Pitch angle:0-15 degree
Control System:touch switch, wireless remote , central control RS232
Application:High-class office conference meeting room
Warranty:1 year

Product Description

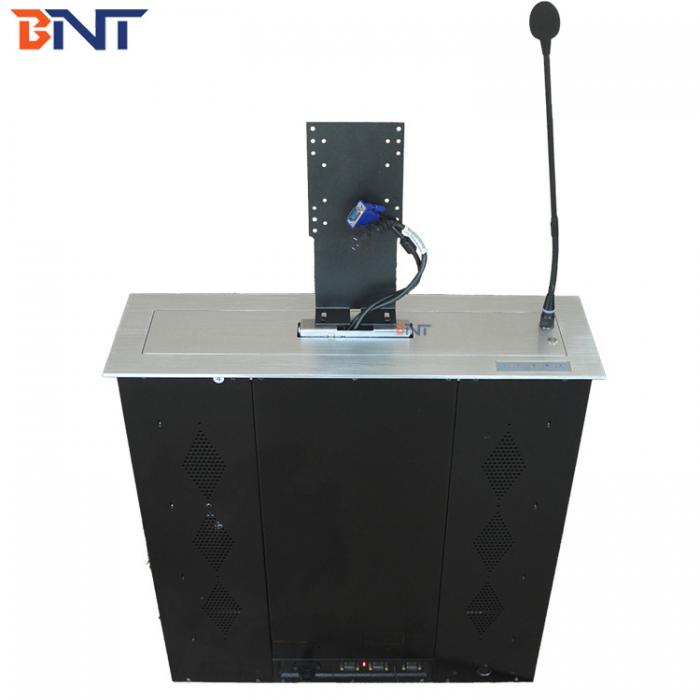

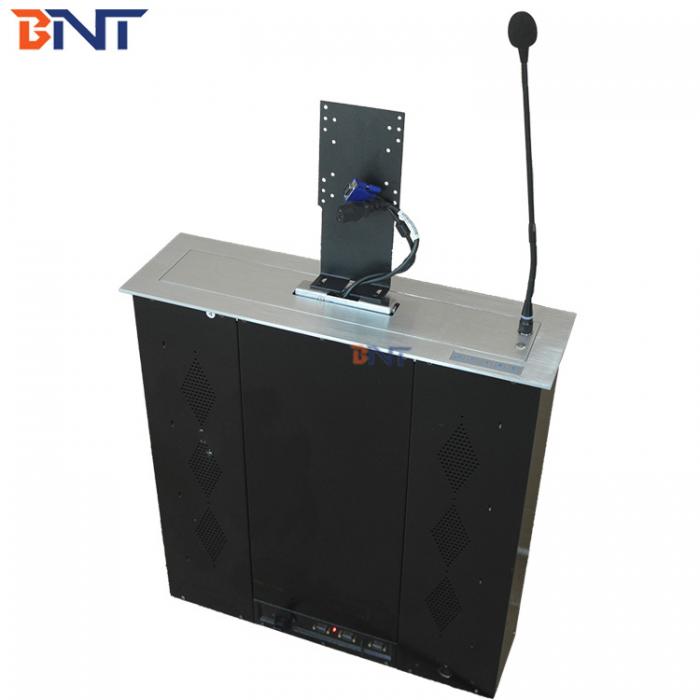

Table motorized LCD screen lift BML1-17

keyword: Conference System, LCD-monitor-lift-with-mic,LCD-monitor-lift-with-microphone,monitor lift, motorized screen,retractable-pop-up-screen, screen lift,Motorized MIC,conference system, motorized monitor and microphone lift


Introuction:

BML1-17 is designed as a advance integration hiding monitor Lift with microphone  for conference audio video system.

With the universal VESA mounting panel, available for all types of monitors within 403*330*68mm size.

Controlled conveniently by central control, touch swith or remote control, the screen and mic could be rising up

together form the conference tables automatically throgh the lift driving.

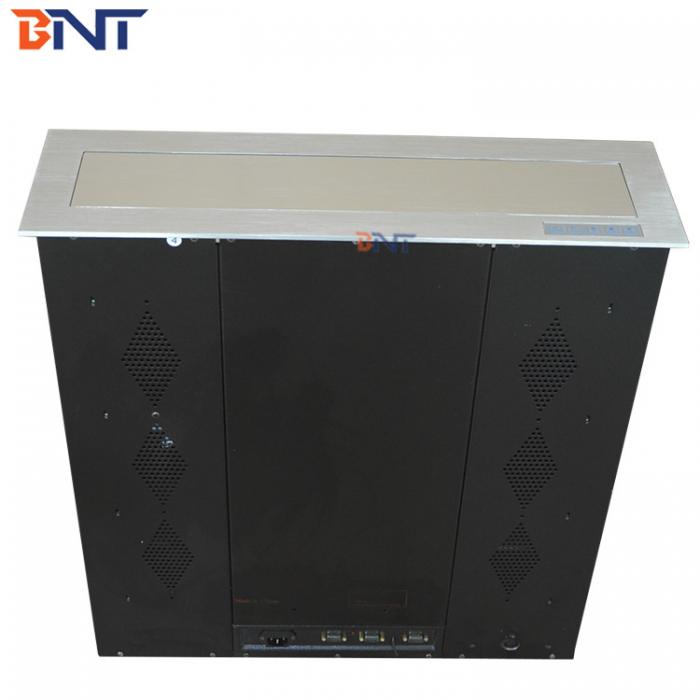

On the other way, they could also be hidden under the table automatically by the users' control once finish using.

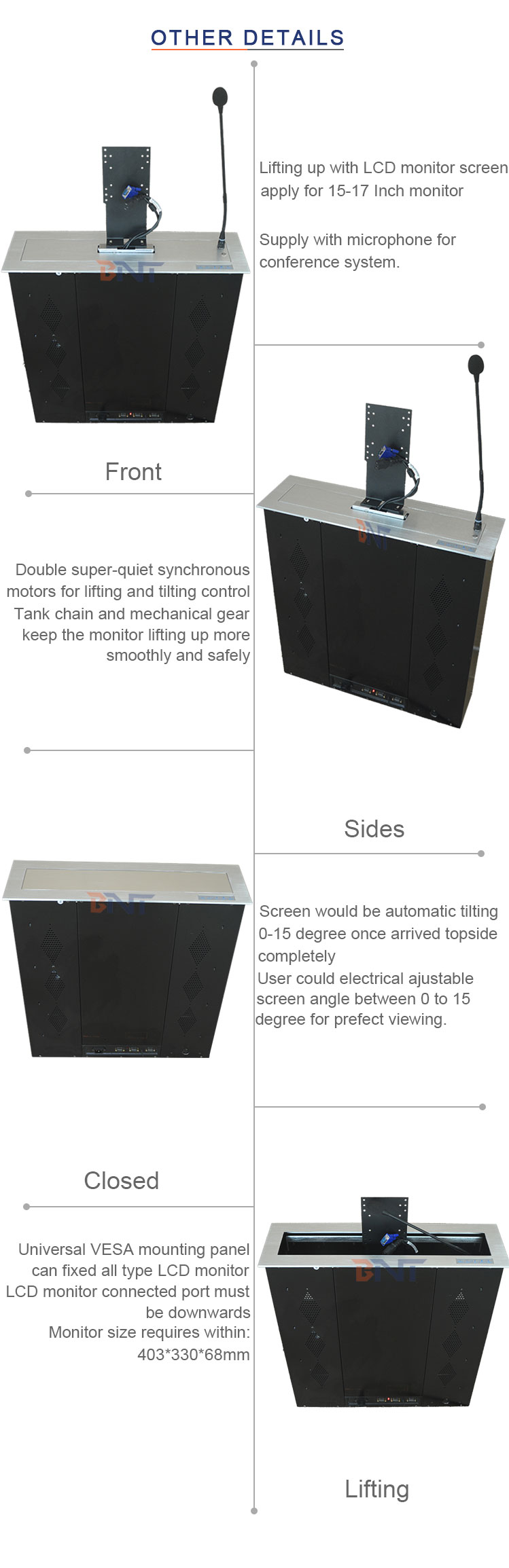

With double super-quite synchrous motor, rasing up and down by tank chain

and mechanical gear, the lift is much smooth and quiet when working.

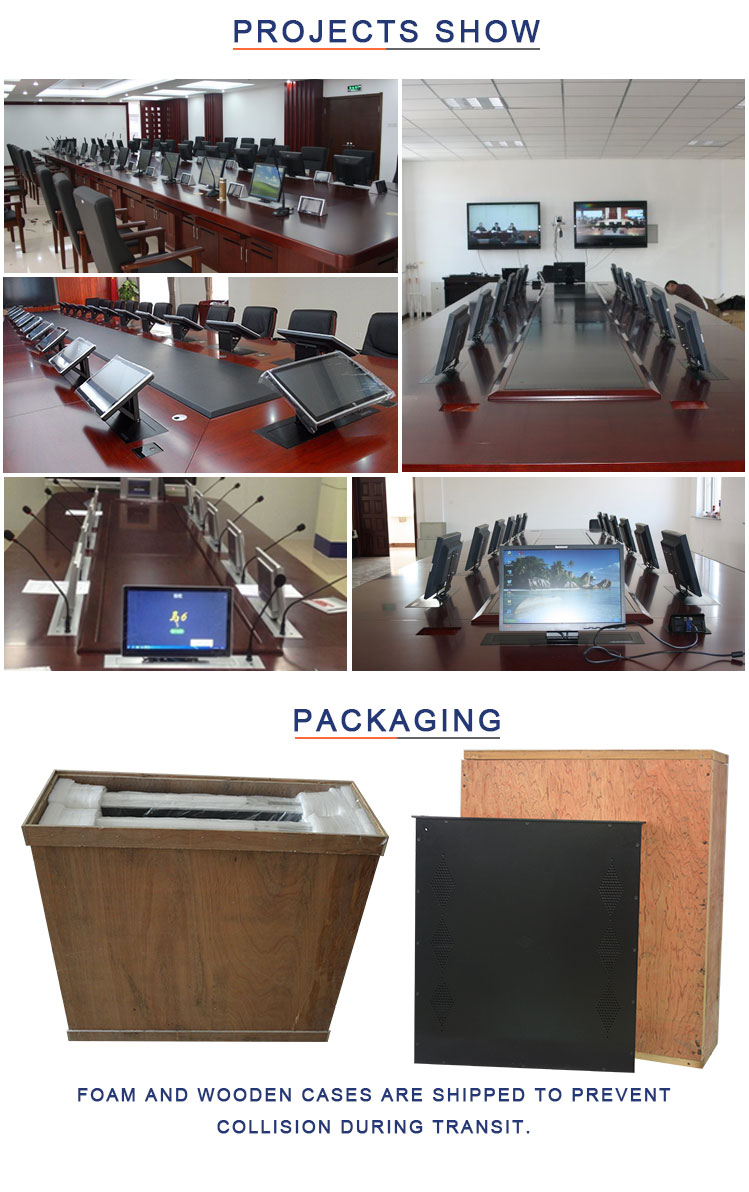

It is widly use in conference system,  video conference system, tv conference system, financial analyzing system,

advanced office system,lecture and training room with conference table& computer desk,etc.

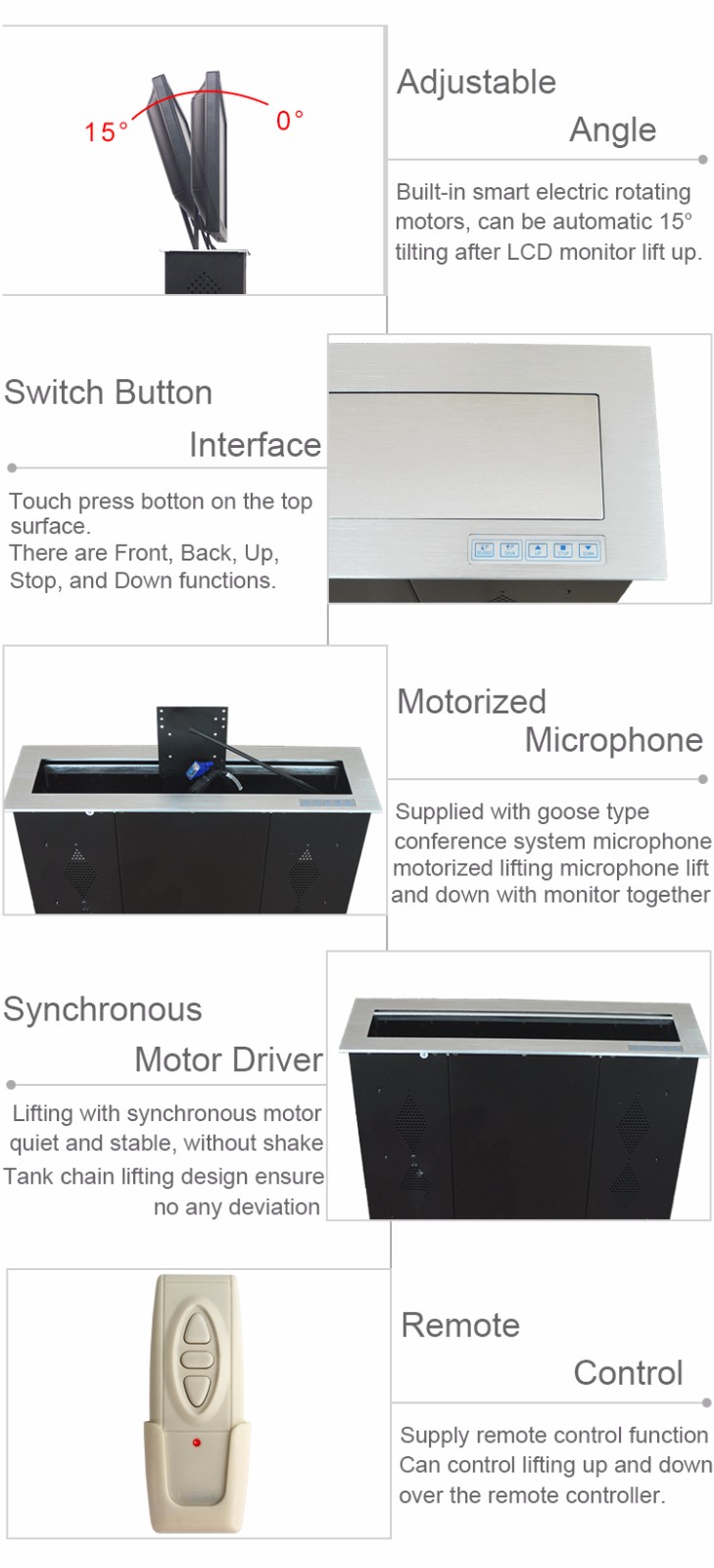

Selling Point:

  1. Aluminum alloy finished, orrosion resistant, wear-resistant,smooth surface and not easy to scratch.

  2. Electric control,height-adjustable.

  3. Suitable for 17inch LCD monitors and all types of monitors within 403*330*68mm size.

  4. conference system microphone, can be control independently by button switch

  5. Motorized by tank chain and mechanical gear, good quality and smooth and quiet when working

  6. Hidden design to save more space and makes a modern office environment

  7. 0-15 degree adjustable angle to make prefect viewing angle for users

  8. Virtually Silent working with excellent working life.

  9. works smoothly and quietly. Low noise which less than 30db

  10. with protecting function of LCD monitors by cutting the electricity off automatically

  11. Control system: Touch Switch on LCD motorizedLift panel, RF remote control, RS232 AND rs 485 central control..

  12. Power plug and voltage could be changed according to user's requirment

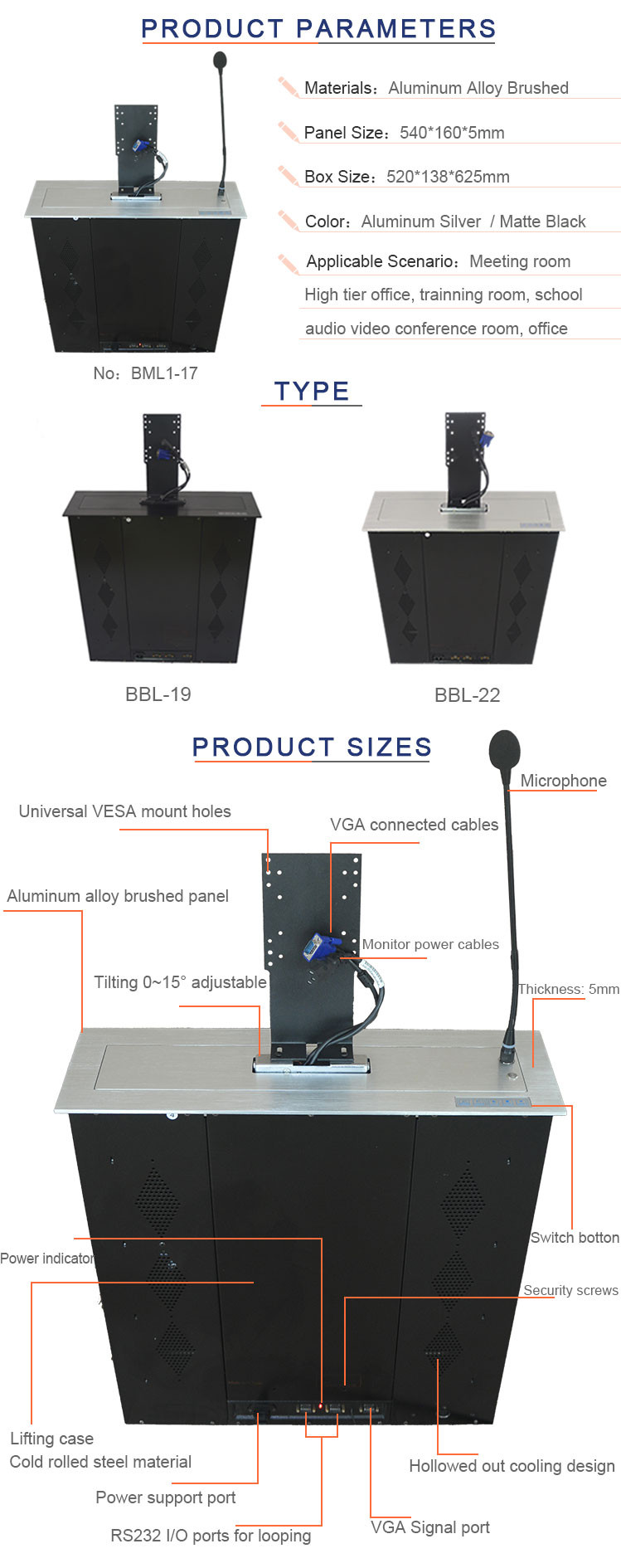

Detail Parameter:

Item NameMonitor monitor microphone lift
StyleAvailable for 17inch screen with microphone
Model No.BML1-17
MaterialAluminum alloy brushed panel
ColorSilver /Black/ Gold
Panel Dimension540*160*5mm
Panel Thickness5mm
Box Size520*138*625mm
Monitor size required403*330*38mm
Pitch angle0-15 degree
Control Systemtouch switch, wireless remote , central control RS232
ApplicationHigh-class office conference meeting room
Warranty1 year
