Name:Pop Up LCD Monitor Lift BLL45-19
Model No:BLL45-19
Style:LCD lift without monitor
Color:Black/ Silver
Material:Aluminum Brushed Panel
Box Size:545*175*655mm
Panel Size:570*190*5mm
Panel Thickness:5mm
Monitor Pitch Angle:45-60°
Screen Size:19 Inch (L)500(D)105mm
Interface:VGA/HDMI +RS232 I/O
control:Supplied with RF remote control
Voltage:110V-240V
warranty:1 Year

Product Description

Pop Up LCD Monitor Lift  BLL45-19

Keyword: LCD monitor lift, monitor lift, LCD screen lift, computer LCD lift, conference table, meeting table, conference system, pop up lcd lift



Introduction:
Computer LCD motorized lift is a new design of electrical lifting monitor mechanism with screen tilting function. It’s a hidden equipment for audio video conference system.
LCD/LED monitor could arising up to the tabletop if user would to present information by wireless controller. And the LCD/LED monitor would be tilting 45~60 degree for prefect presentation automatically once arrived the desktop socket.
LCD/LED monitor would moving back from 60 degree position and coming down into the mechanism case if user finished meeting.
LCD motorized lift featured by stable performance, automatic operation & space saving. With its smart function, it provides an efficient manner and enjoyable experience in conference communication and information presentation for meeting.


Feature:
1, Made of aluminum alloy panel and steel case, adopt imported circuit board, synchronous motor,and gear & rack.
2, Aluminum oxidation with drawing polishing surface process to make panel smooth and bright, ensure elegant and high grade appearance
3, Adopt double powerful motor, one motor to control monitor lifting up and down from mechanism, another motor control monitor tilting 45~60 degree angle and back.
4, Smart circuit board offer monitor protection, monitor could be power on once arrived the desktop, monitor could be power off if reach the bottom automatically.
5, Adopting superior gear appliance with double rack to ensure stable and reliable lifting for screen
6, Provide screen angel adjustable button, 45~60 degree screen to offer prefect reading area for information presentation.
7, Working smoothly and quietly during operation. Low noise which less than 30db.
8, Complicated with AMX/Crestron or other central controller via RS232 port.

Selling Points:
1, Screen could be electrical overturn 45~60 degree angle for more prefect presentation.
2, Aluminum black or silver color are available for normal selection, aluminum gold color could be customized if required.
3, 10 year LCD motorized lift manufacturing experience, quality approved with CE ROSH SASO CCC
4, Provide professional user’s manual and cable connection layout for installation.

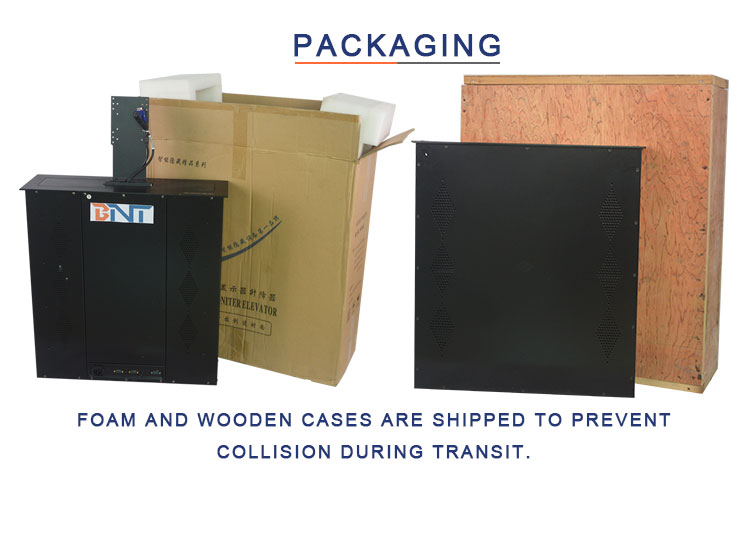

5, Packed with strong carton with foam cushion to protect product during transportation. Wood box or wood support is available if required.


Application:
LCD Monitor Lift is widely used on conference system, like video conference system, tv conference system, financial analyzing system, advanced office system, lecture and training room with conference table& computer desk together.



specifications:

Item ModelBLL45-19
StyleLCD lift without monitor
MaterialAluminum Brushed Panel

Panel Size

570*190*5mm
Box Size  545*175*655mm
Panel Thickness5mm
ColorBlack/ Silver
Interface
VGA/HDMI +RS232 I/O
Tilting Angle45-60°
