MK7610designed as an morden manual flip up socket with muti-functional configuration, It is a hidden equipment as it is mounted on the tabletop to use and hidden into table when it is not be used.
Name: | Desktop Manual Flip Up Connector MK6240 |
---|---|
Model No: | MK6240 |
Type: | Table Flip up Socket |
Item: | Tabletop hidden manual rotating power outlets |
Color: | Silver/Black |
Material: | Aluminum alloy surface panel + plastic hanger |
Rotation Type: | Manual rotating |
Configuration: | 2*Universal Power+4*RJ45 Network |
Panel Thinkness: | 3MM |
Panel Size: | 299*110mm |
Cutout Size: | 269*104mm |
Cable length: | 1.5 m (Length is available from 0.3m ~ 4.0m) |
Rated voltage: | 110V ~ 240V AC |
Rated current: | 10 ~ 13 Amp |

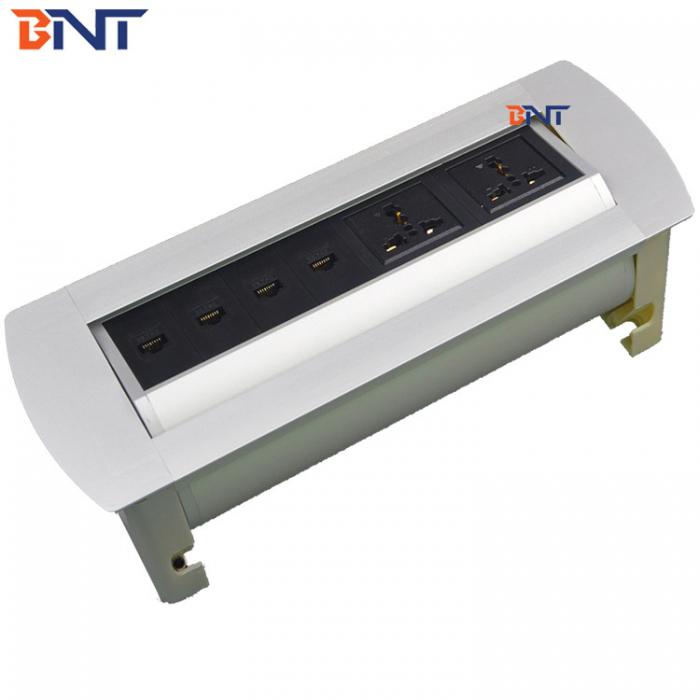

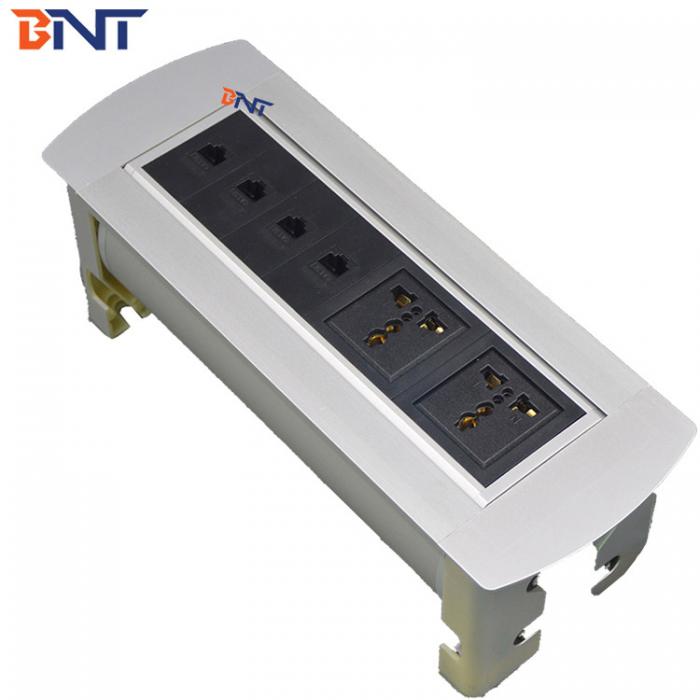

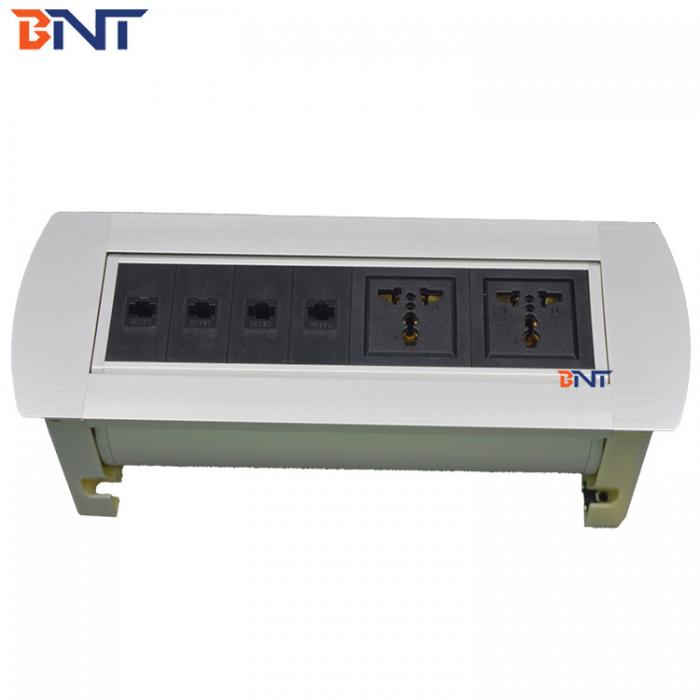

Desktop Manual Flip Up Connector MK6240
Keywords: conference system,desk socket, desk outlet,table socket, tabletop socket, desktop socket, table out, desktop-power-socket, hidden socket, hidden-desktop-socket, manual-desktop-socket, flip up socket, manual flip up socket,desktop connector

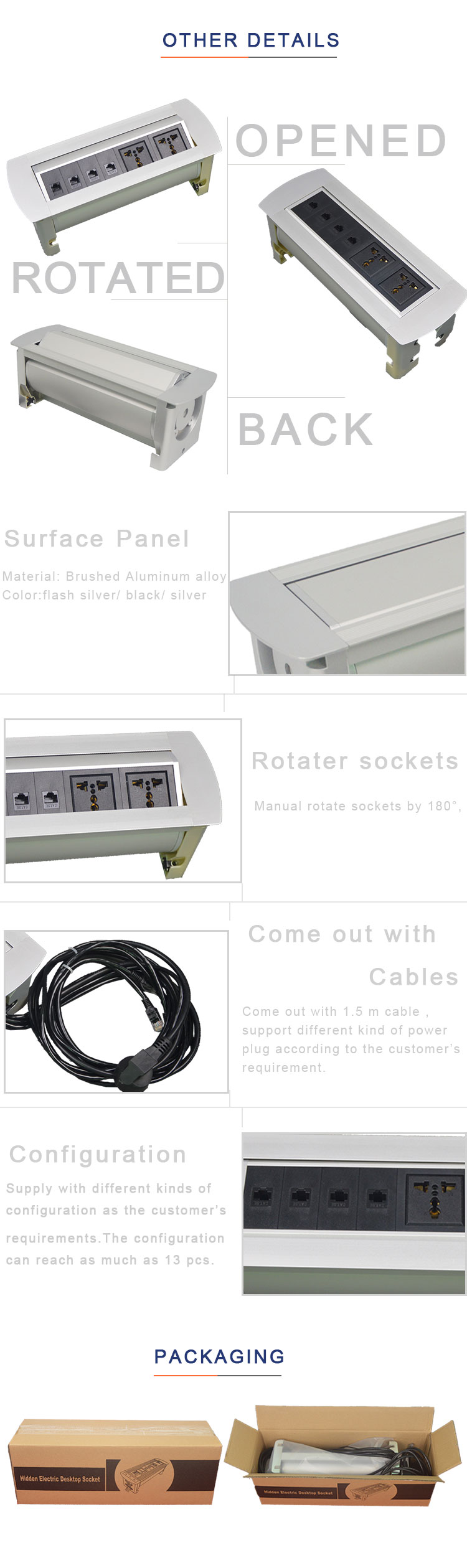

Introduction:
MK series desktop socket is designed as an morden manual flip up socket with muti-functional configuration,
It is a hidden equipment as it is mounted on the tabletop to use and hidden into table when it is not be used.
Overturn clockwise the socket body by 180 degree to make the socket expose to the tabletop, the users can connect the socket for use.
At the same way, if it is unuse, overturn it on anticlockwise way to make the socket hidden under the table.
The configuration is changeable with different moduls for different application and requirment.
It’s widely used for the high-tier office table, conference room table AV solution, hotel room and training room.
Seiling Piont:
1.Manual flip up design,energy saving and easy to operate
2.Hidden design to save more space and makes a modern office environment
3.Competitive price and high quality
4.Made by Aluminum alloy material, which is corrosion resistant, wear-resistant,smooth surface and not easy to scratch.
5.High quality 3mm panel thickness aluminum panel surface, not easy to bend
6.1PCS customized is availble, the modules can be customized as the customer's requirement
7.Changeable configuraton with different modules for selection : HDMI, VGA, USB, Network, Audio, Video, Mic, RCA, power switch

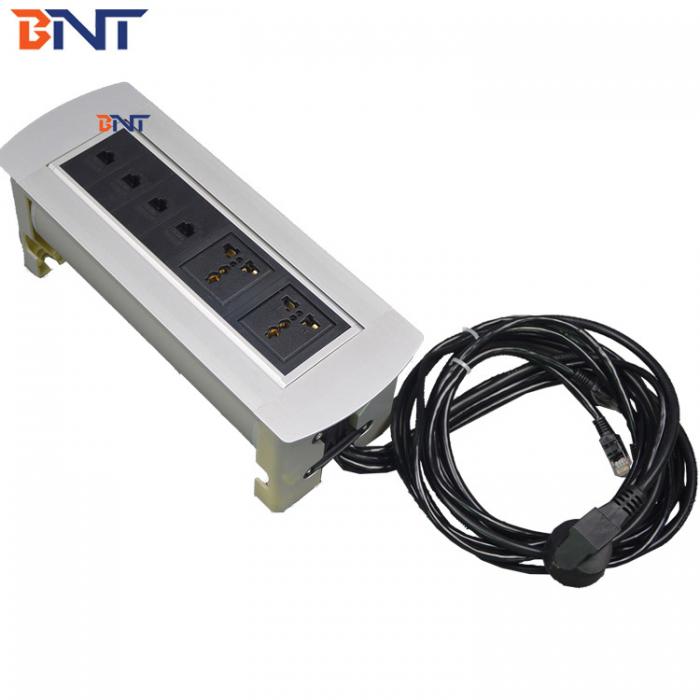

7. Come out with 1.5M cable, support different kinds of power plug as customer's requirement
8. Easy installation, just cut out a square hole on the table and install the socket accordingly.
How to install and operation:
1. Cut out a properly square hole on the table;
2. Put the socket into the square hole, the connction cable hidden under the table;
3. Connect the power code, manually flip up 180 degree to use

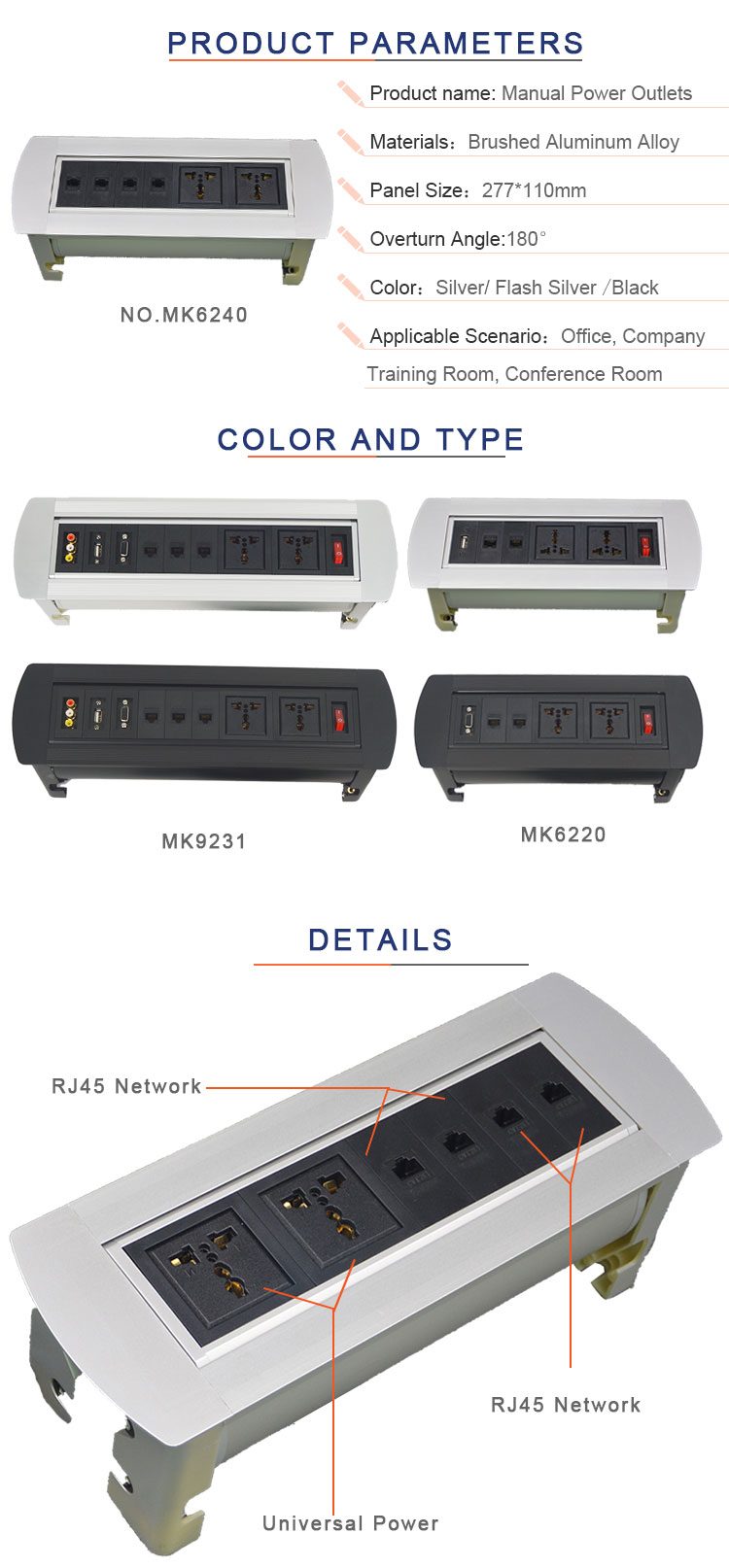

Detail Parameter:
Model No. | MK6240 |
Type | Table Flip up Socket |
Style | Tabletop hidden manual rotating power outlets |
Material | Aluminum alloy surface panel + plastic hanger |
Color | Silver/Black |
Rotation Type | Manual rotating |
Configuration | 2*Universal Power+4*RJ45 Network (could be customized)(could be customized) |
Overturn angle | 180 degree |
Panel size | 299mm*110mm |
Panel thickness | 3 mm |
Cutout size | 269mm*104mm |
Cable length | 1.5 m (Length is available from 0.3m ~ 4.0m) |
Rated voltage | 110V ~ 240V AC |
Rated current | 10 ~ 13 Amp |
Warranty | 12 month |
