Product Center

  • desk flip rotating socket  EK9807EU
  • desk flip rotating socket  EK9807EU
  • desk flip rotating socket  EK9807EU
  • desk flip rotating socket  EK9807EU

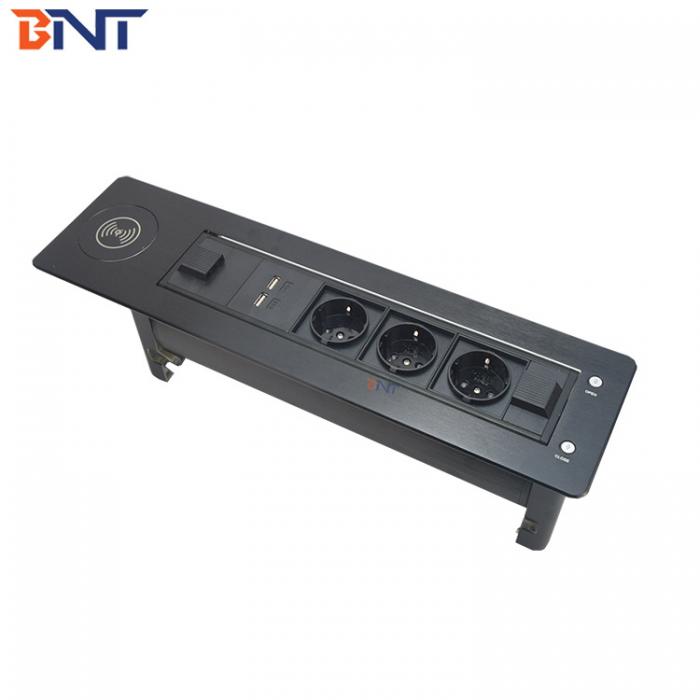

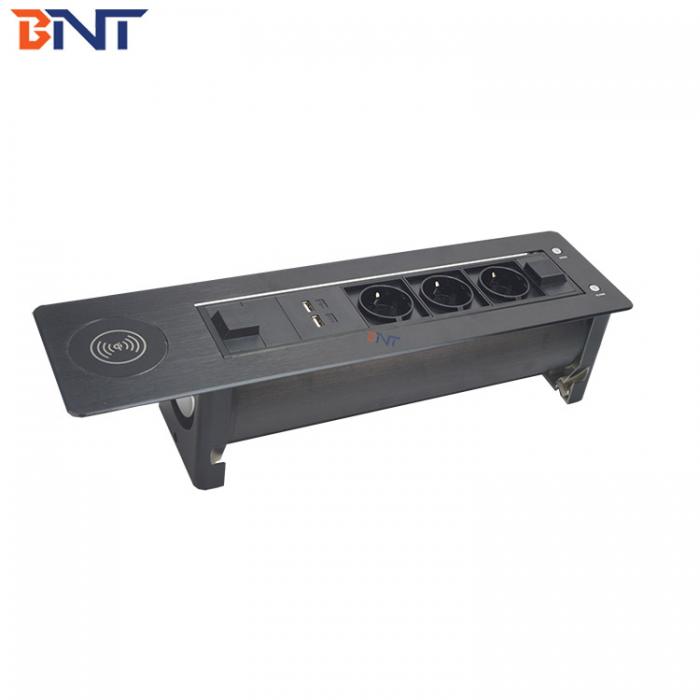

Name:desk flip rotating socket EK9807EU
Model No::EK9807EU
Type:Electric Flip Rotating Socket
Material:Aluminum alloy
Configuration:3* EU standard power plug +2*USB charger+1*for phone wireless charger
Panel Size:350*130*2mm
Box Size:335*115*103mm
Panel Thinkness:3MM
Cable length:1.5 m (Length is available from 0.3m ~ 4.0m)
Rated voltage:110V ~ 240V AC
Rated current:10 ~ 13 Amp

Product Description

with a phone wireless charger desk flip rotating socket  used in conference system  EK9807EU


Keywords: electrical socket, desk socket, desk outlet,table socket, tabletop socket, desktop socket, table outlet, desktop-power-socket, hidden socket, hidden-desktop-socket, motorized-desktop-socket, flip-up-socket, manual-flip-up-socket table connector,conference table power oultlet, rotatable socket

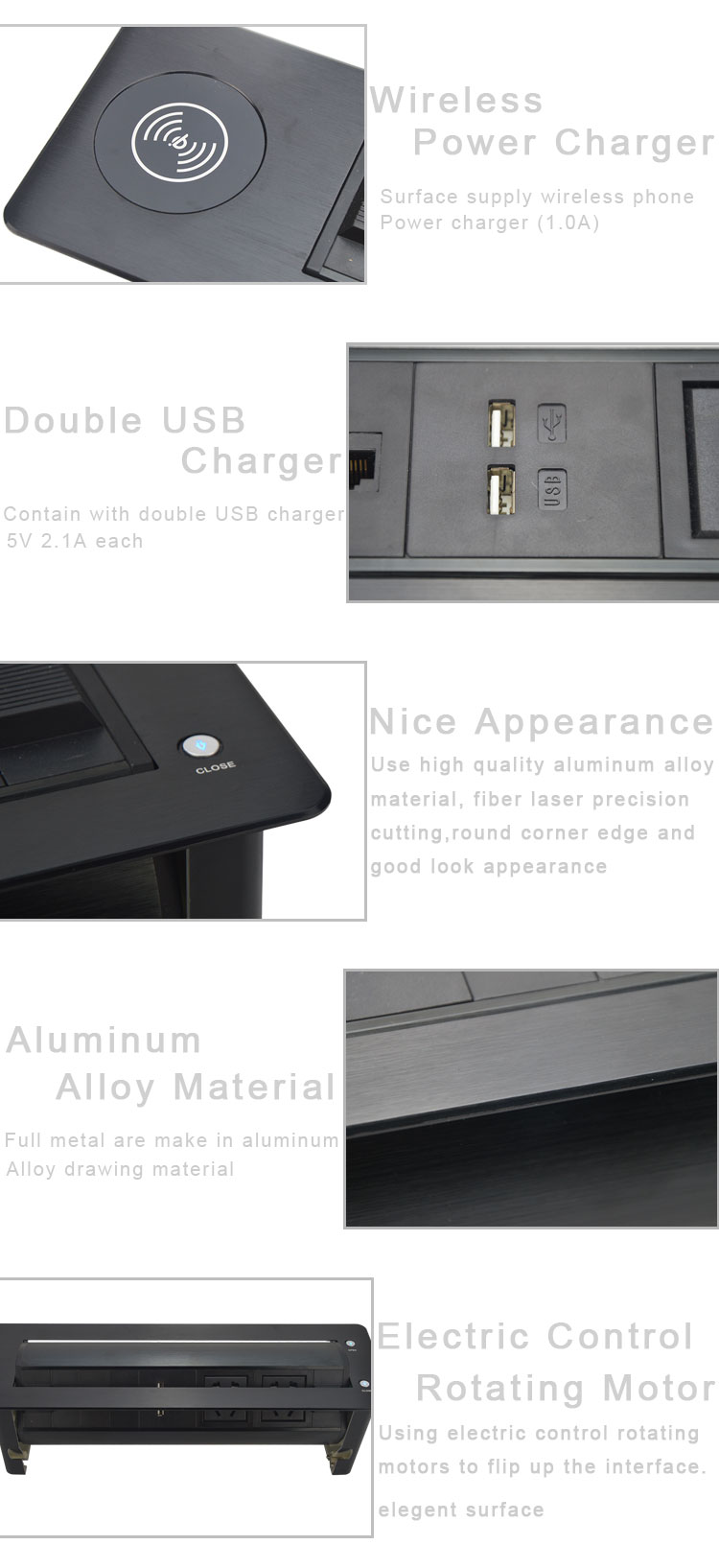

EK series Electric Desktop socket is an innovative solution to provide electric, data and other AV interfaces on desktop office furniture. EK series Electric Desktop Socket is powered by an electric drive motor that rotate the sockets to the hidden position when unused. A photoelectric eye inside electric desktop socket will prevent rotation if there was an obstruction on the top of electric desktop socket during working.


1, Electric Desktop socket offer outlets for accessibility to electric, internet, telephone, VGA, HDMI,3.5 Audio, USB, MIC and could be customized for other data and AV interfaces.

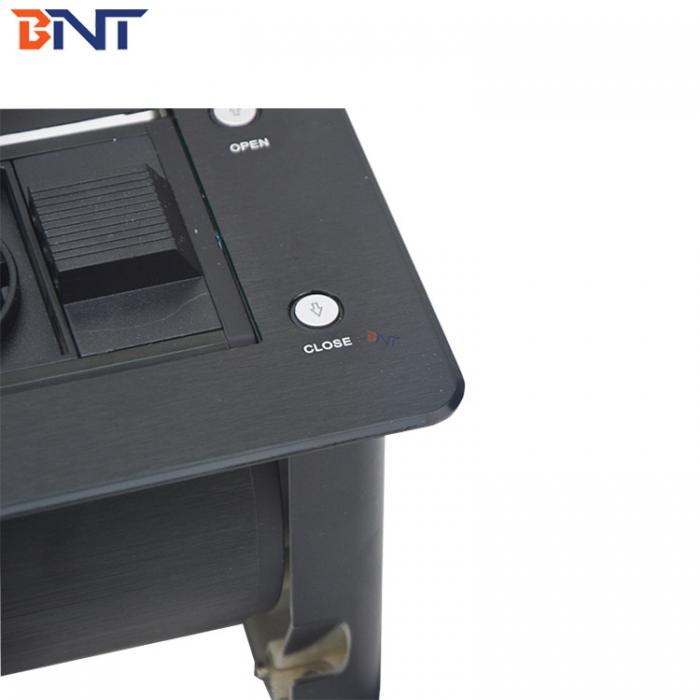

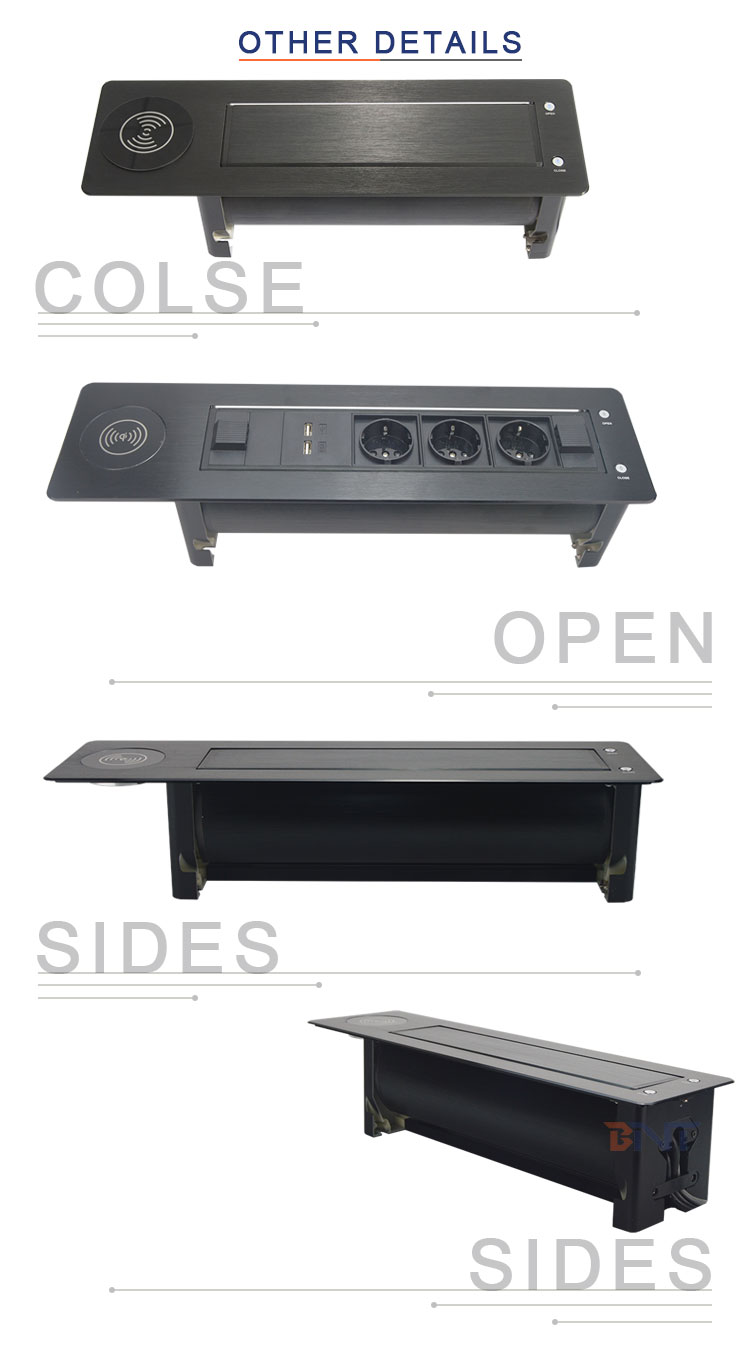

2, Electric Desktop socket rotate all sockets to the hidden position by press the touch button, to provide a clean and elegant surface of worktop. Also Electric Desktop socket prevent accidental spillage of fluids into the product.

3, A photoelectric self-lock device inside the Electric Desktops Socket prevent sockets from rotating if one of socket units is plugged. Also prevent cable damage and hand jammed during operation.

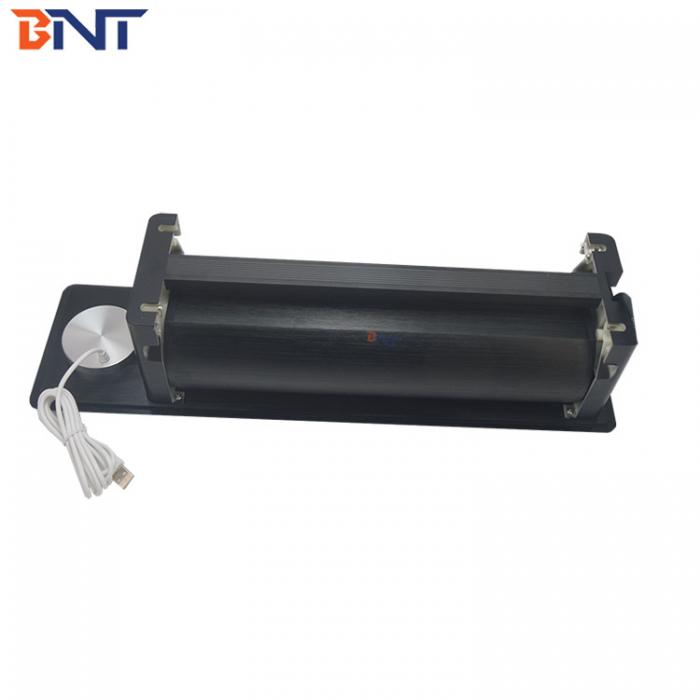

4, Electric Desktop Socket contain an electric drive motor, ensure reliable rotation and the ability to orient itself to the proper position.

Selling Points:

1, high quality aluminum alloy finishing with motors

2, white/black/gold color is available for color selection

3, Power plug and voltage could be changed accordingly.

4, OEM with logo on product and packing is available

5, Customized made is available

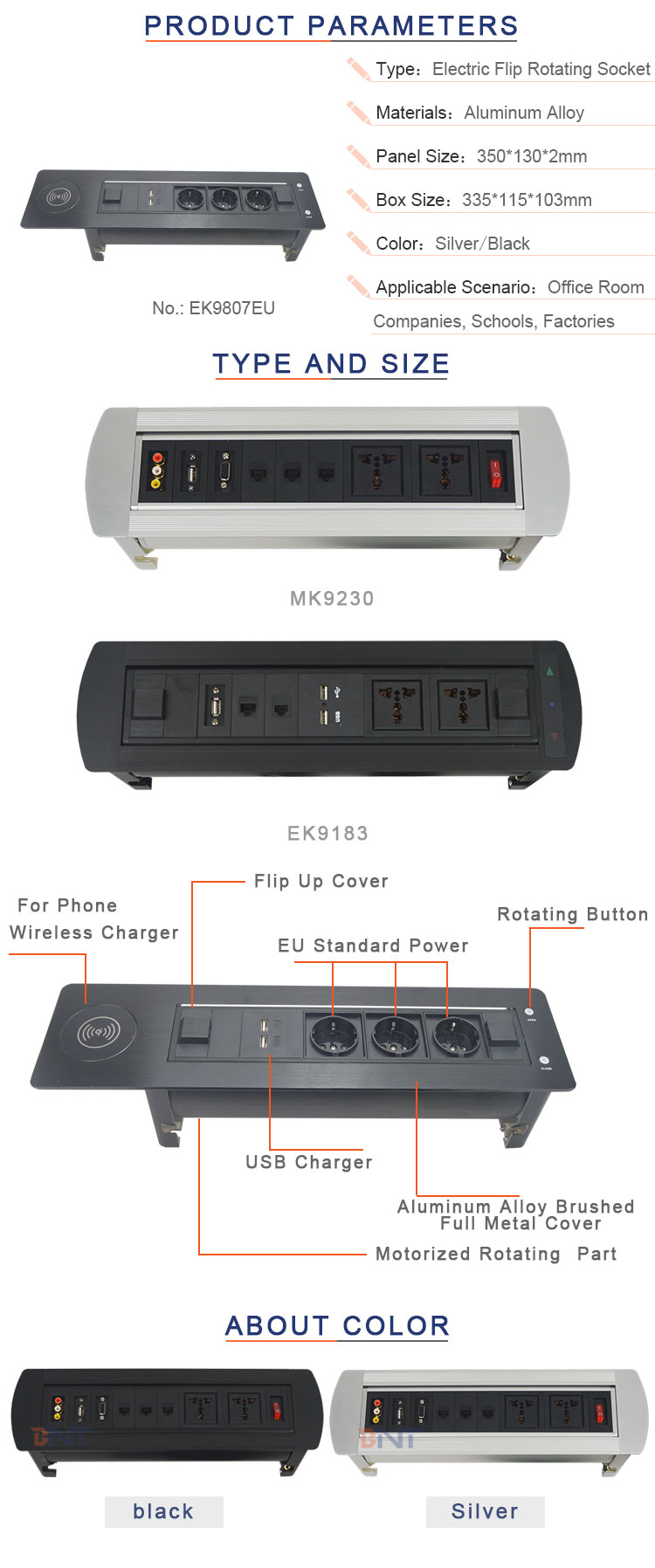

Model No.EK9807EU
TypeElectric Flip Rotating Socket
MaterialAluminum alloy
Configuration3* EU standard power plug  +2*USB charger+1*for phone wireless charger
Overturn angle180 degree
Panel size350*130*2mm
Panel thickness3 mm
Box Size335*115*103mm
Cable length1.5 m (Length is available from 0.3m ~ 4.0m)
Rated voltage110V ~ 240V AC
Rated current10 ~ 13 Amp
Warranty12 month
