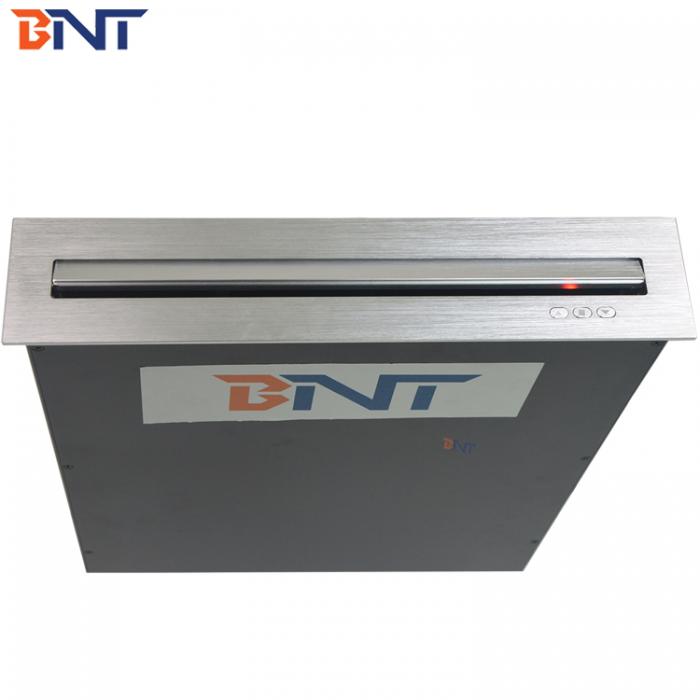

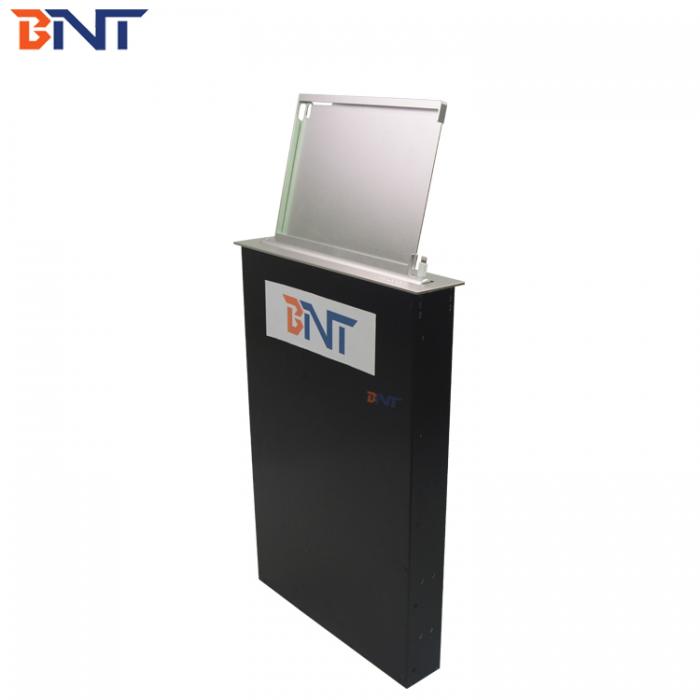

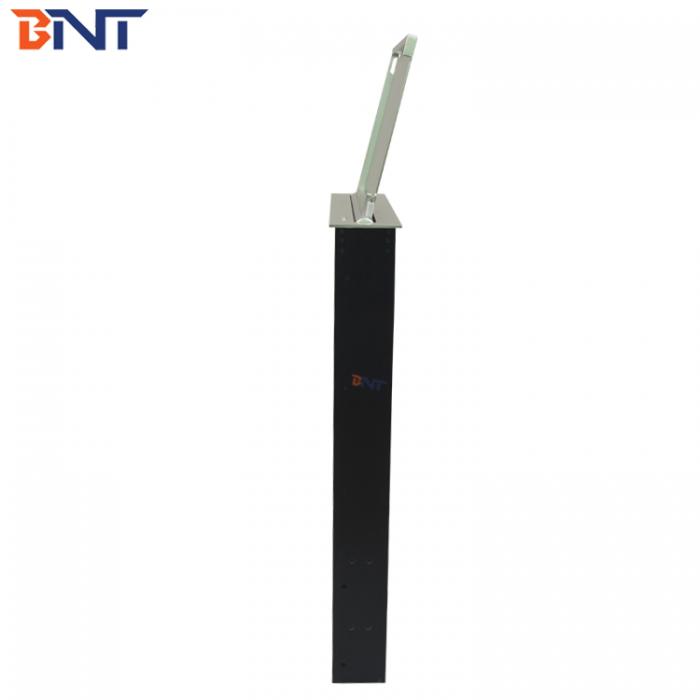

Name:ipad monitor lift
Model No:ipad lift
Type:ipad lift
Color:Black/ Silver
Material:Brushed Aluminum alloy
screen Size:255*180mm
Panel Size:340*70*3mm
Panel Thickness:3mm
Box Size:500*325*65mm
Monitor Pitch Angle:0~30 Degree
Interface:VGA/HDMI +RS232 I/O
Remote distance:10m
Voltage:110V,220V,240V
Warranty:1 year

Product Description

used in video  system brushed  aluminum alloy panel new design  ipad monitor  lift with a data cable of iphone  apply for ipad tablet PC


Introduction:

LCD Monitor ipad  Lift is advance hiding equipment designed for audio video system in office furniture. The LCD screen of Motorized monitor lift would be rising down into the desk and hidden under the office table when unused; Screen inside the Computer Screen Lift would be rising up from table automatically by touch switch or remote control and present the workable screen on the desktop if used.

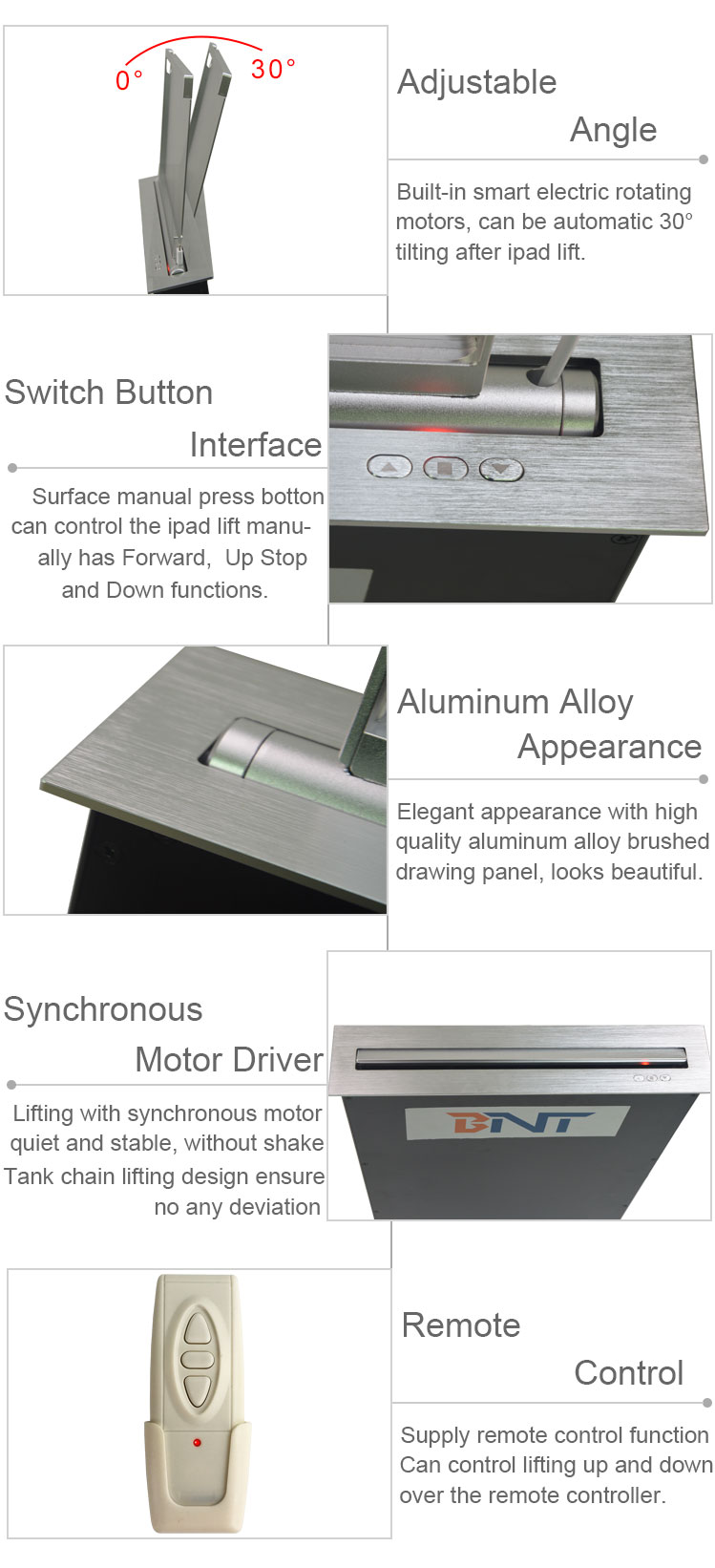

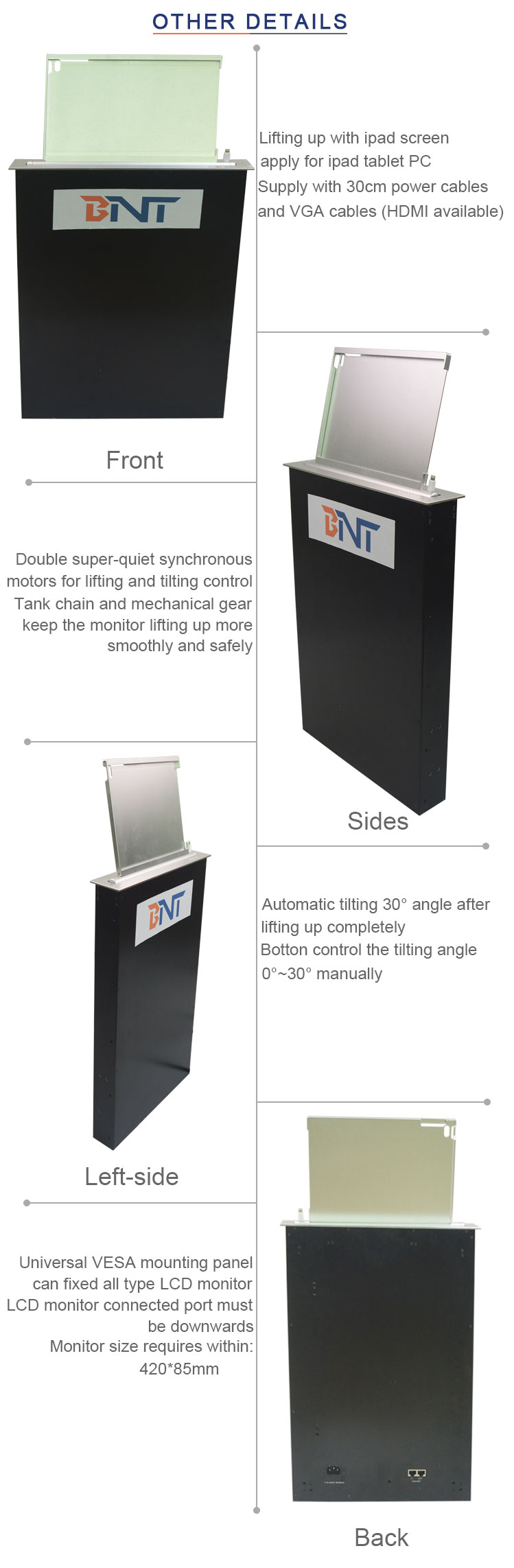

Feature:

1, The panel of LCD lift is aluminum alloy, with aluminum wire drawing process on surface.

2, The ipad Lift adopts synchronous orbit lifting principle.

3, ipad Desktop LCD automatic lift up device works smoothly and quietly. Low noise which less than 30db.

4, ipad Lift provides protecting function of LCD monitors by cutting the electricity off automatically.

5, ipad  Lift would be adjustable elevation angle of LCD monitor for protecting your eyes from the direct light.

5, Tabletop Monitor Lift is controlled by two big AC motors. One controls opening and closing the panel of LCD monitor Lift; one controls lifting the monitor up and down and adjust the angles of the monitor.

6, Control system: Touch Switch on LCD electric Lift panel, RF remote control, RS232 AND rs 485 central control.



 selling points:

1, high quality aluminum alloy finishing with motors

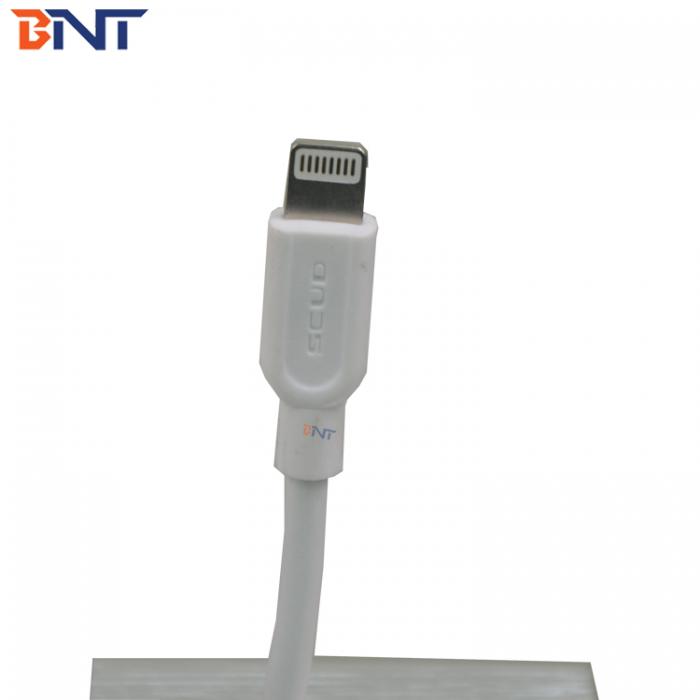

2, apply for ipad tablet PC,with a data cable of iphone

3, white/black/gold color is available for color selection

4, Power plug and voltage could be changed accordingly.

5, OEM with logo on product and packing is available

6, available Customized as required



Application:

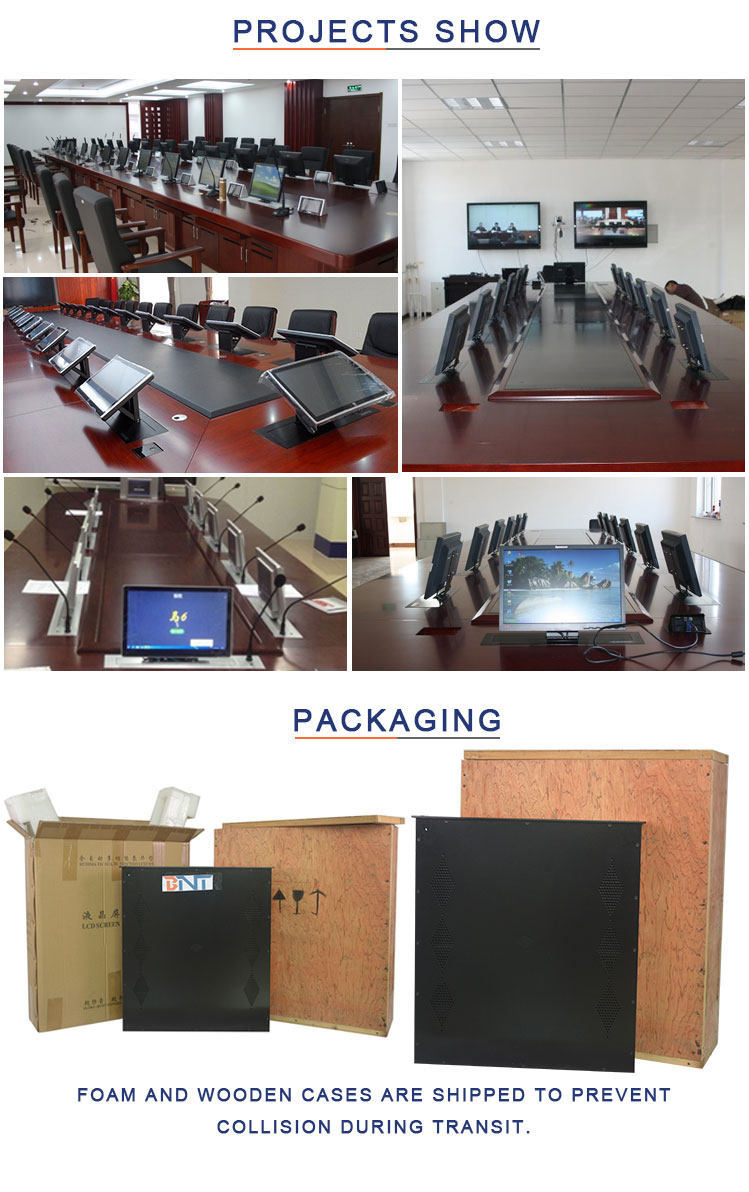

ipad  Lift is widely used on conference system, like video conference system, tv conference system, financial analyzing system, advanced office system, lecture and training room with conference table& computer desk together.

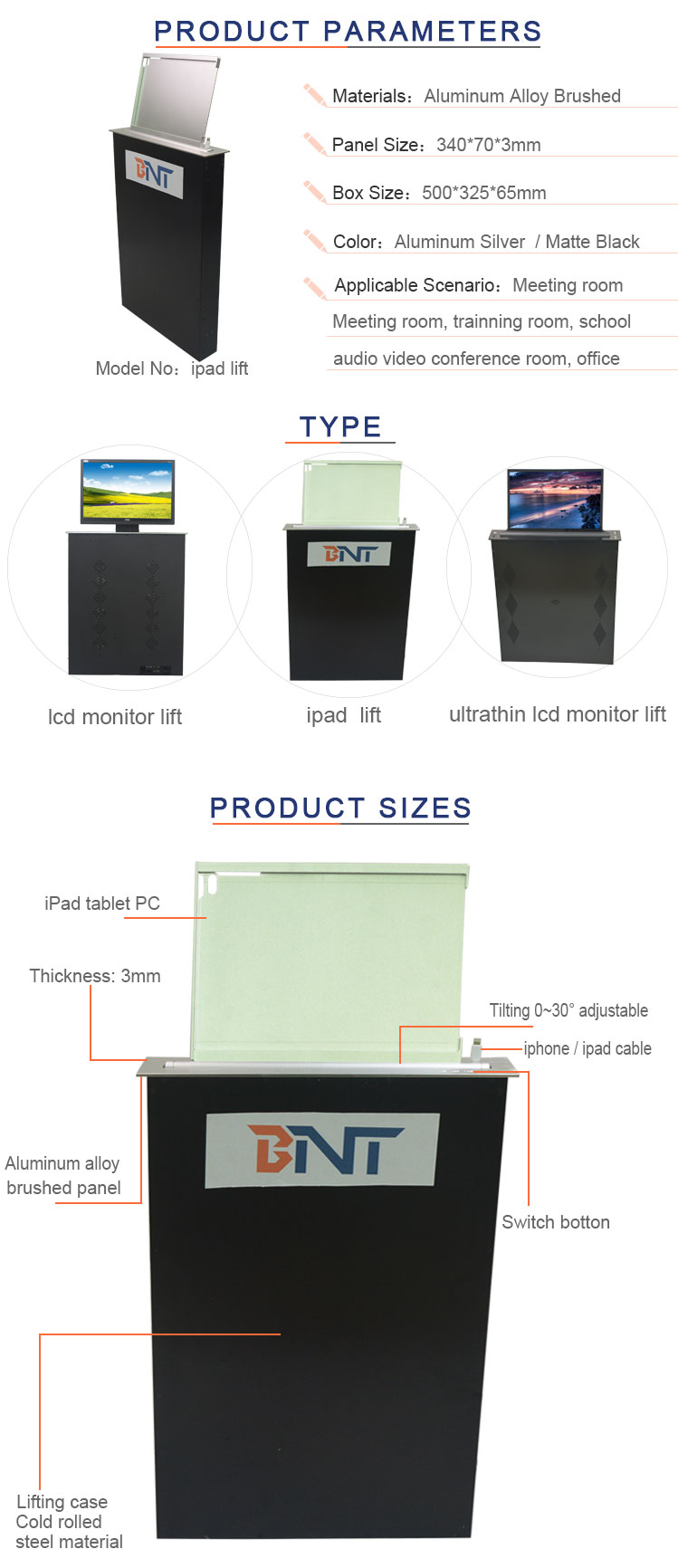

specification:

Item Modelipad lift
Style ipad lift
MaterialAluminum alloy
Box Size500*325*65mm
Panel Thickness3mm
Panel Size340*70*3mm
screen size255*180mm
Monitor Pitch Angle0~30°
ColorBlack/ Silver
InterfaceVGA/HDMI +RS232 I/O
