  • Video voting conference host BNT1000VS

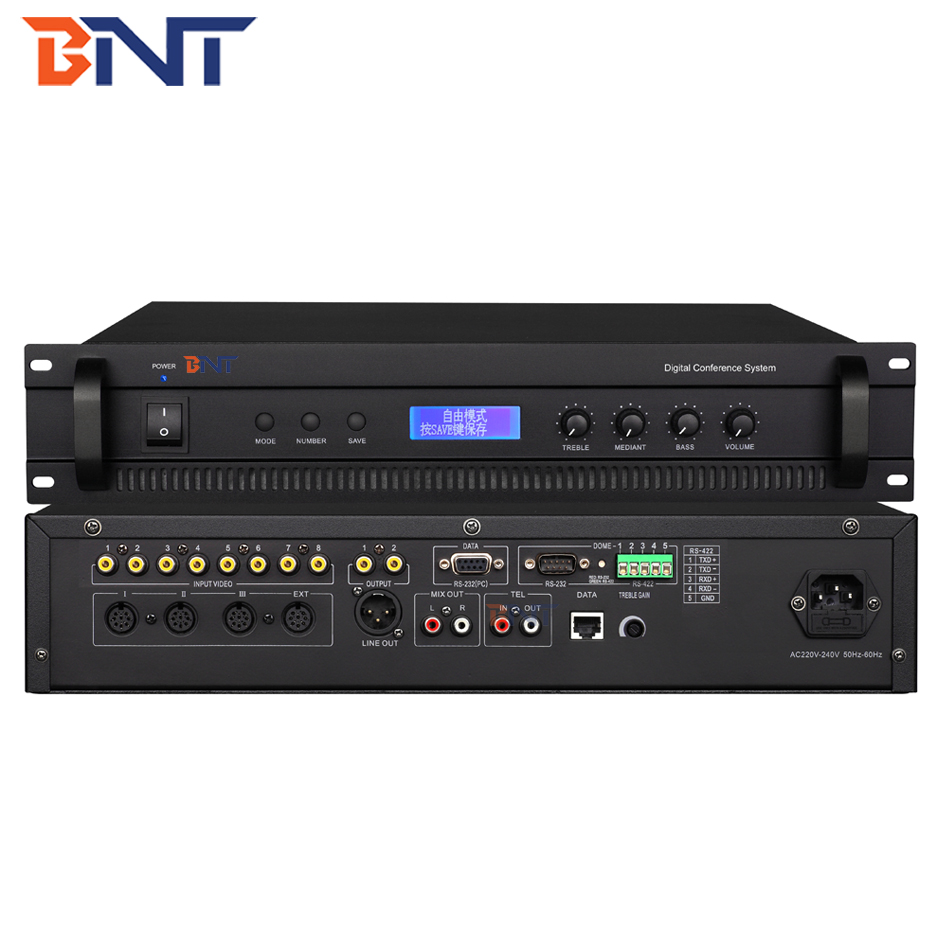

Name:Video voting conference host BNT1000VS
Discussion Conference System Host Frequency response::100Hz ~ 18KHz;
Total harmonic distortion::100Hz~18KHz;conference system sound output:< 0.1%
Power::115W, powered by AC220V

Product Description

Video voting conference host BNT1000VS


● Using digital audio processing and transmission technology, with 4 DELEGATES output interfaces, a single unit can support the total microphone capacity: ≤50

● The connection between the conference control host and the microphone unit uses an 8-core inner shielded cable

● "T-shaped hand in hand" connection technology, the system has an automatic repair function, and supports "hot plugging" of the line

● Equipped with a network control port, which can be used to upgrade the control host through the network port. At the same time, it has an RS232 interface, which can be used for centralized microphone management through a computer and special software

● Built-in conference unit detection function, can automatically detect each conference unit before the meeting

● With 122 × 32 LCD display, stand-alone can achieve conference functions such as freedom, rotation, restricted speech, chairperson only, etc. There are function keys and knobs on the host panel for system status display and setting

● The host has 8 input and 2 output video matrix and supports multiple control protocols

● With the camera and video switcher, the camera can be tracked automatically through the RS232 interface

● The host has a voting / election function, which supports voting / election / scoring for the meeting

● The system has a high-quality sound channel effect

● The system has one MIC microphone input port and three sets of audio signal output terminals.

Data sheet:

Product name:Video voting conference host
Discussion Conference System Host  Frequency response:100Hz ~ 18KHz;
Total harmonic distortion:100Hz~18KHz;conference system sound output:< 0.1%
Power115W, powered by AC220V
Can be installed in a 19-inch standard cabinet
