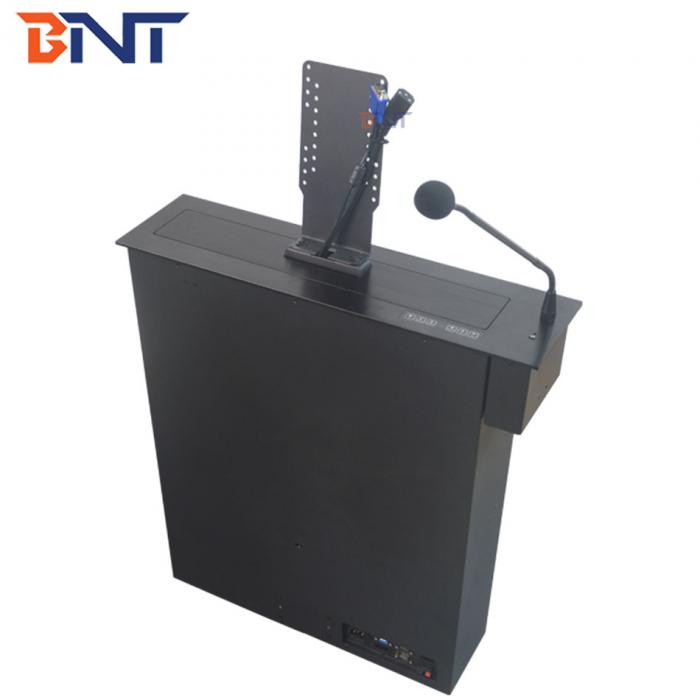

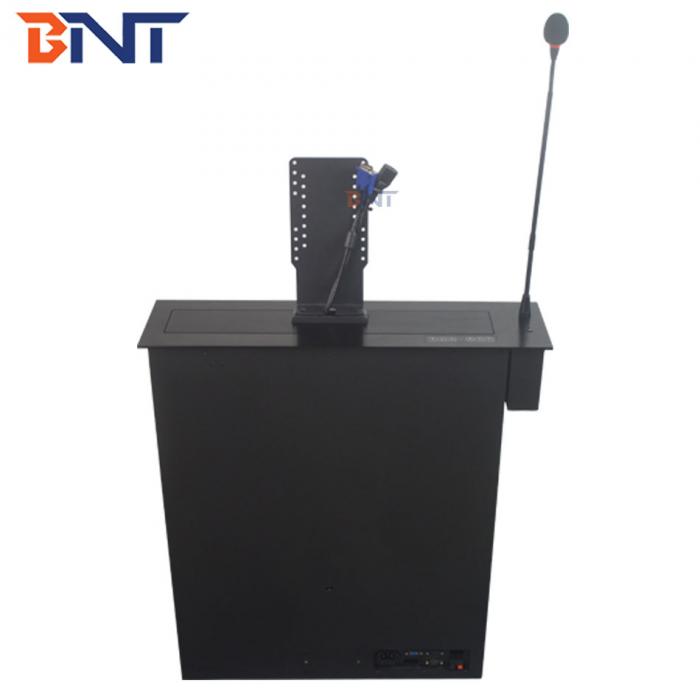

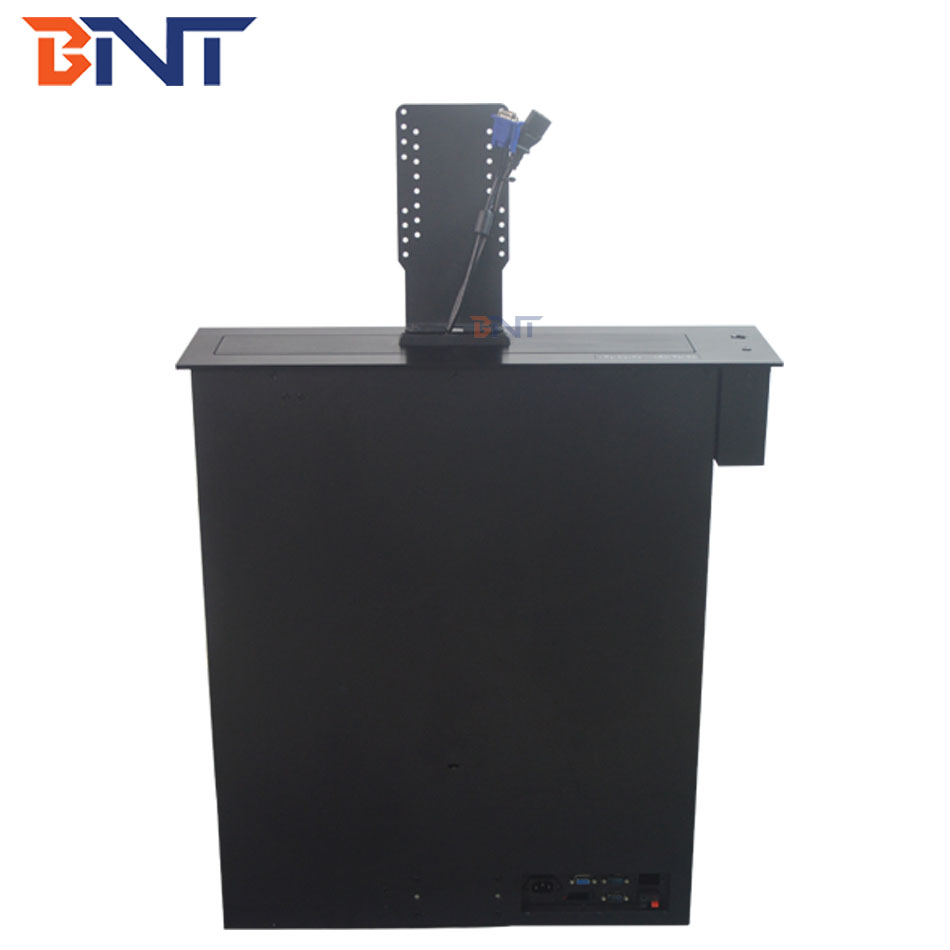

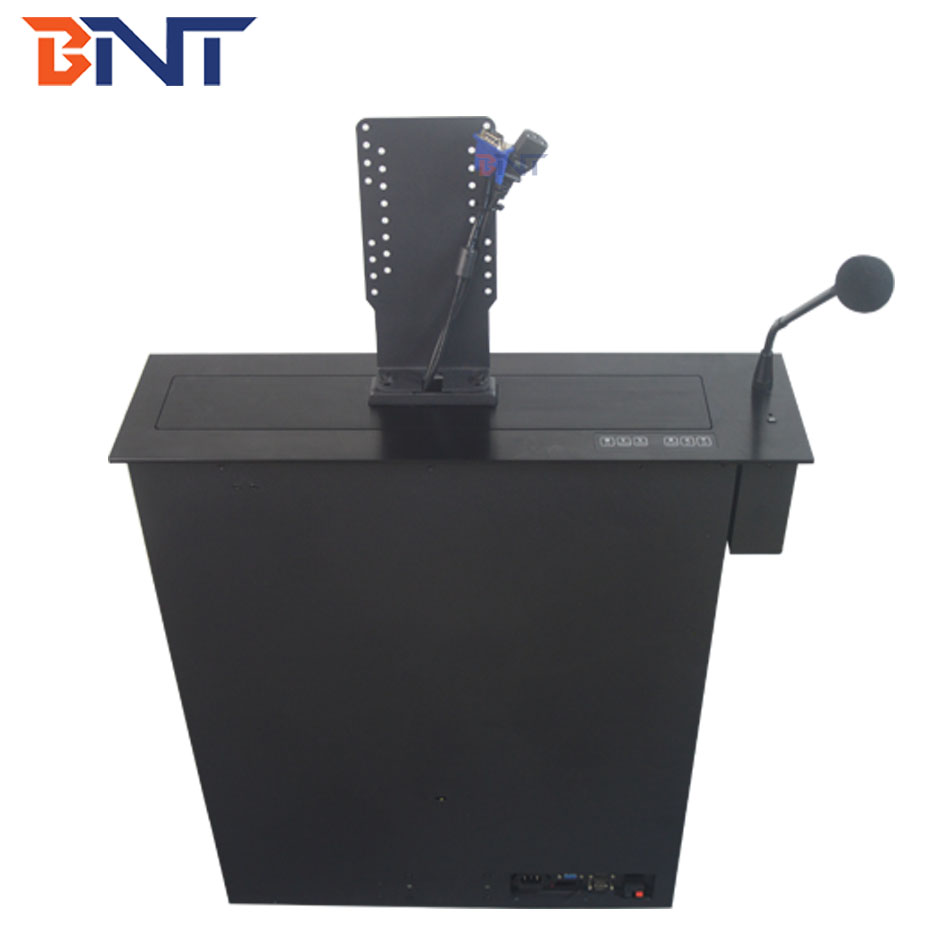

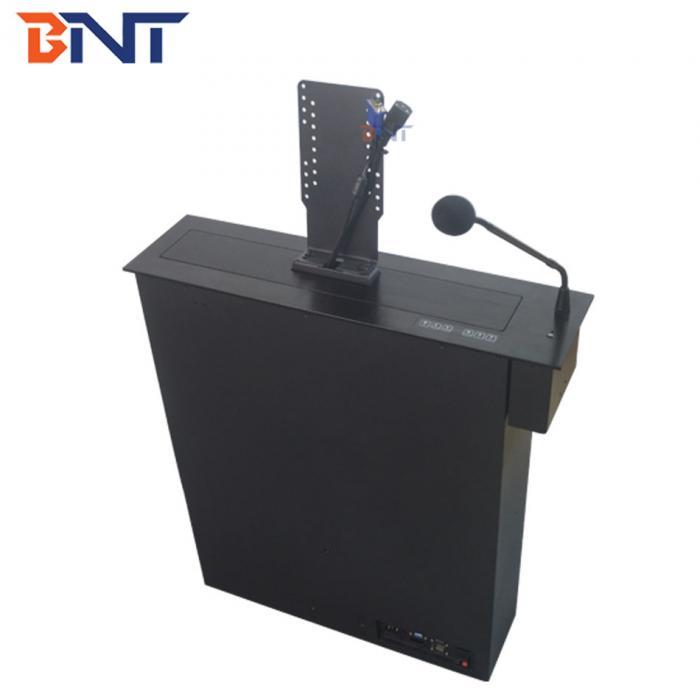

Name:Tabletop LCD Monitor Lift BML2-19
Model No::BML2-19
Style:Motorized monitor lift with built in microphone
Power:20-25W
Color:Black/ Silver
Material:Aluminum Alloy
Suitable Size:19 inch LCD screen
Panel Thickness:5mm
Panel size:600*162*5mm
Box Size:577*143*652mm
Monitor Pitch Angle:0~15 Degree
Swtich:touch button+wireless remote
Voltage:110V-240V
Interface:VGA/HDMI +RS232 I/O

Product Description

Automatic office solution hidden desk monitor lift with built in microphone BML-19


Introduction:

BML2-19 is designed as a advance integration hidden desk monitor Lift with microphone for conference audio video system.

With the universal VESA mounting panel, available for all types of monitors within 19inch size.

Controlled conveniently by central control, touch swith or remote control, the screen is rising up

together form the conference tables automatically throgh the lift driving.

Once unuse, they could also be hidden into the table automatically by the users' control once finish using.

With double super-quite synchrous motor, rasing up and down by tank chain

and mechanical gear, the lift is much smooth and quiet when working.

It is widly use in conference system, video conference system, tv conference system, financial analyzing system,

advanced office system,lecture and training room with conference table& computer desk,etc.



Selling Point:

Aluminum alloy finished, orrosion resistant, wear-resistant,smooth surface and not easy to scratch.

Electric control,height-adjustable.

Suitable for 19 inch monitor

conference system microphone, can be control independently by button switch

Motorized by tank chain and mechanical gear, good quality and smooth and quiet when working

Hidden design to save more space and makes a modern office environment

0-15 degree adjustable angle to make prefect viewing angle for users

Virtually Silent working with excellent working life.

works smoothly and quietly. Low noise which less than 30db

with protecting function of LCD monitors by cutting the electricity off automatically

Control system: Touch Switch on LCD motorizedLift panel, RF remote control, RS232 AND rs 485 central control.

Power plug and voltage could be changed according to user's requirment


Detail Parameter:

 Item Name  hidden desk monitor lift
 Style  Available for 19inch screen with bulid in microphone
  Model  BML2-19
  Material  Aluminum alloy
  Panel Size  600*162*5mm
 Box Size  577*143*652mm
  Panel Thickness   5mm
  Available Monitor Space 490(L)*86(D)mm
  Monitor Pitch Angle  0-15 degree
  Color  Black/ Silver
  Interface  VGA/HDMI +RS232 I/O
  Control system  Switch/Remote Control/RS232 control
