Product Center

85 mm Pop-Up Desk Socket with Four AC Outlets, USB-A/C and Wireless Charging

Name:	85 mm Pop-Up Desk Socket with Four AC Outlets, USB-A/C and Wireless Charging
Product name:	85 mm cut-out pop-up socket, 4 AC + USB-A/C + wireless
Model:	PP85-2
Material:	PC, brushed finish
Configuration:	4 x universal AC + 1 x USB-A + 1 x USB-C + 15 W wireless charging
Rated current:	16 A
Rated voltage:	110-220 V
Cut-out:	85 mm
Cable length:	1.5 m
Colour:	Black / Grey / White
Certification:	CE, ETL, KC, RoHS
Application:	Office desk, kitchen counter, meeting table

Product Description

An 85 mm cut-out pop-up socket for desks, counters and meeting tables. Press the top and the unit rises; four universal AC outlets sit alongside USB-A, USB-C and a 15 W wireless charging pad. Closed, the plate finishes flush with the surface.

Where it fits

Built-in workstation areas, office desks, kitchen counters and meeting tables where the surface has to stay usable between charges. The 85 mm cut-out keeps the footprint small.

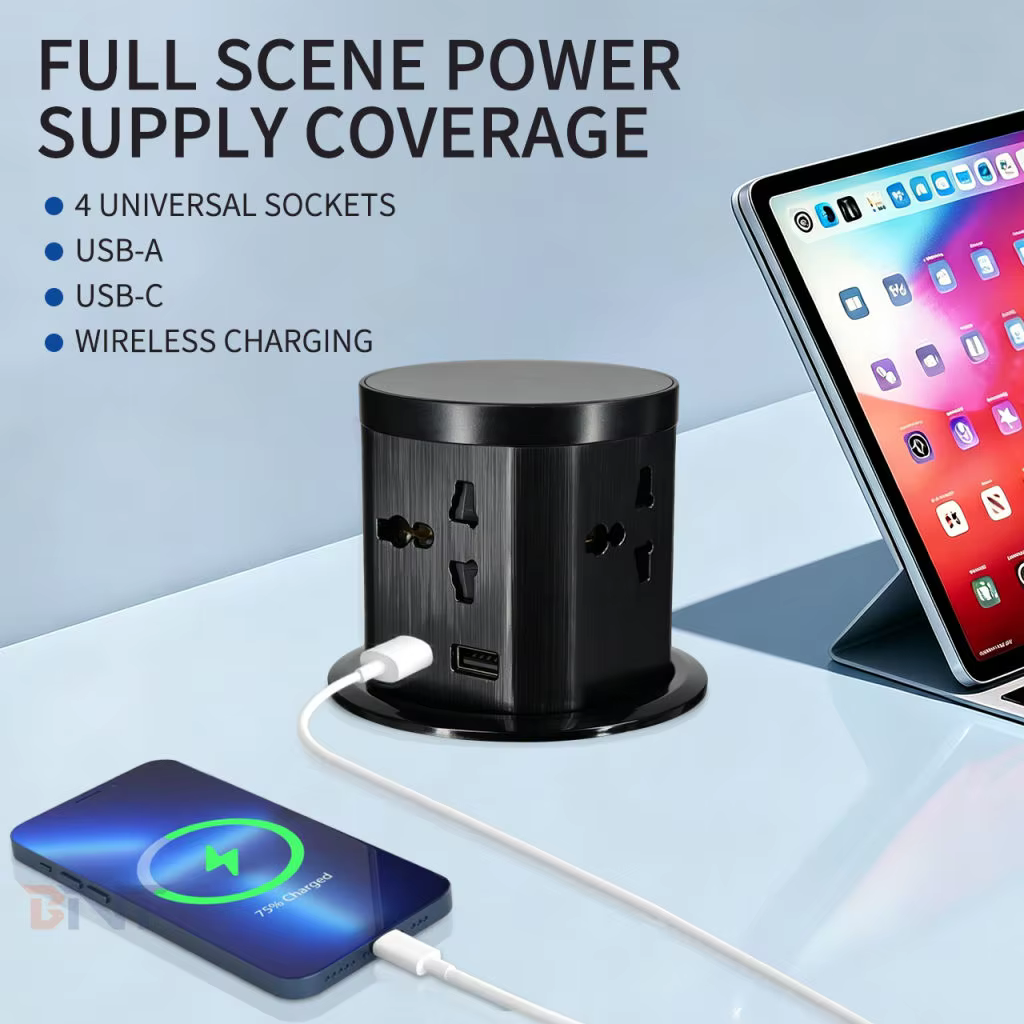

Pop-up desk socket in use on an office desk

What you get

85 mm cut-out, press-to-open lift, so the surface stays clear when closed
4 universal AC outlets, 1 x USB-A and 1 x USB-C
15 W wireless charging pad built into the top plate
16 A rated, 110-220 V, 1.5 m cable
CE, ETL, KC and RoHS listed
Black, grey or white top plate

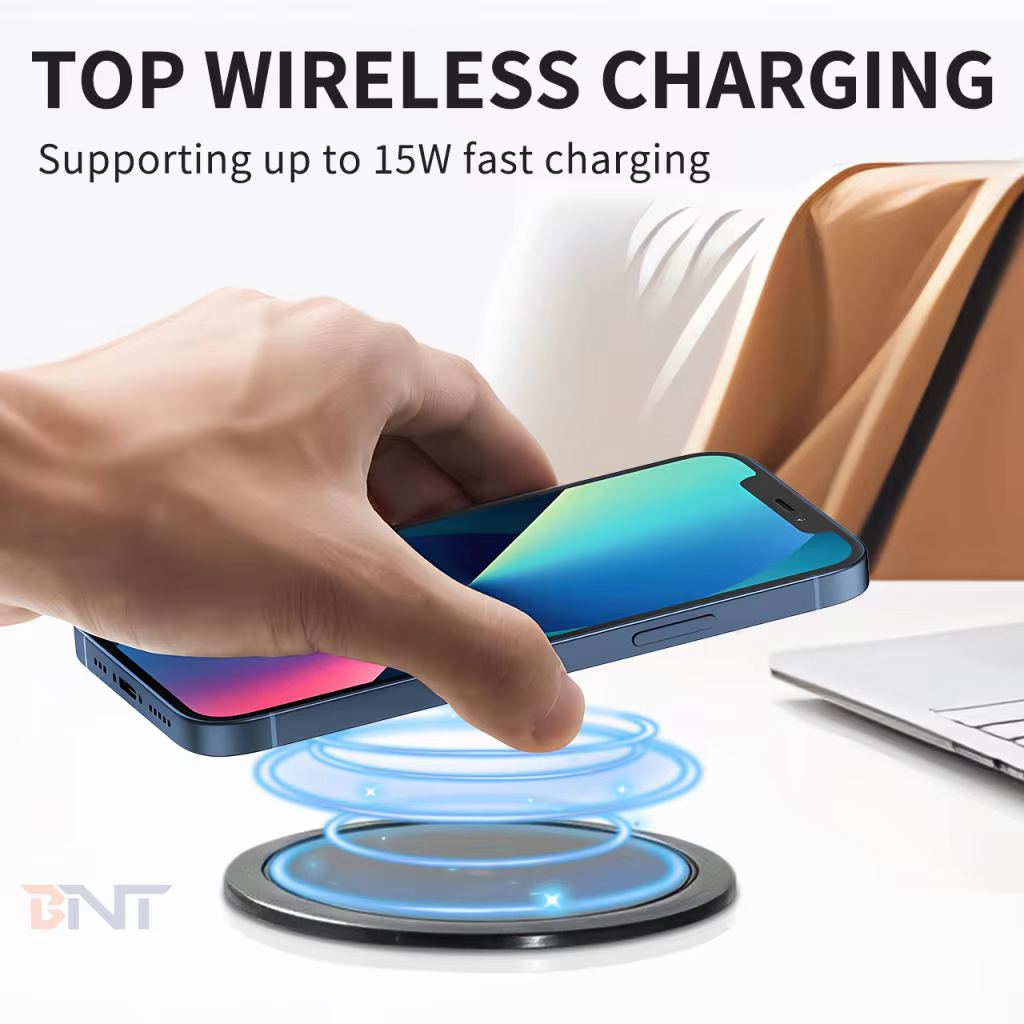

Wireless charging on the pop-up socket top plate

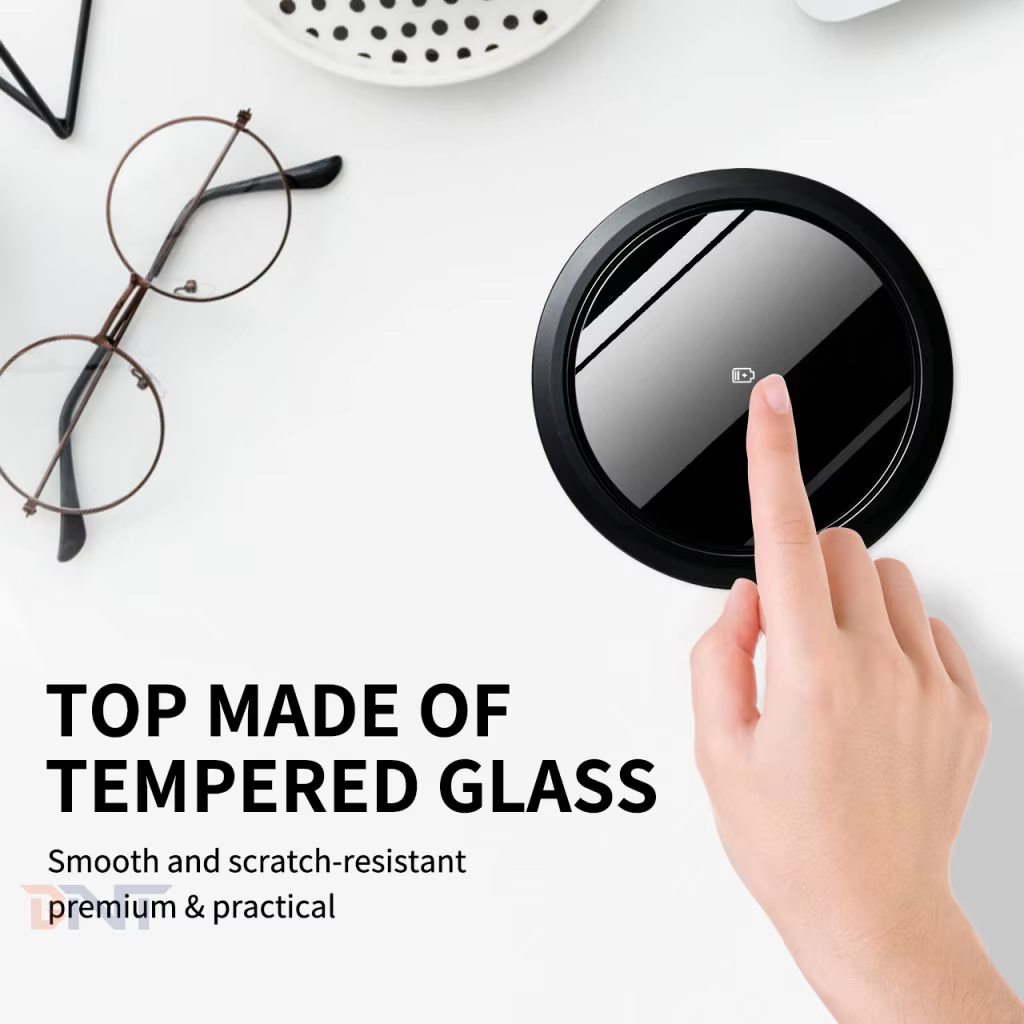

Tempered glass top plate pressed by hand

Specifications

Model	PP85-2
Cut-out	85 mm
AC outlets	4 x universal
USB	1 x USB-A, 1 x USB-C
Wireless charging	15 W
Rated current	16 A
Rated voltage	110-220 V
Cable length	1.5 m
Colours	Black, grey, white
Certification	CE, ETL, KC, RoHS

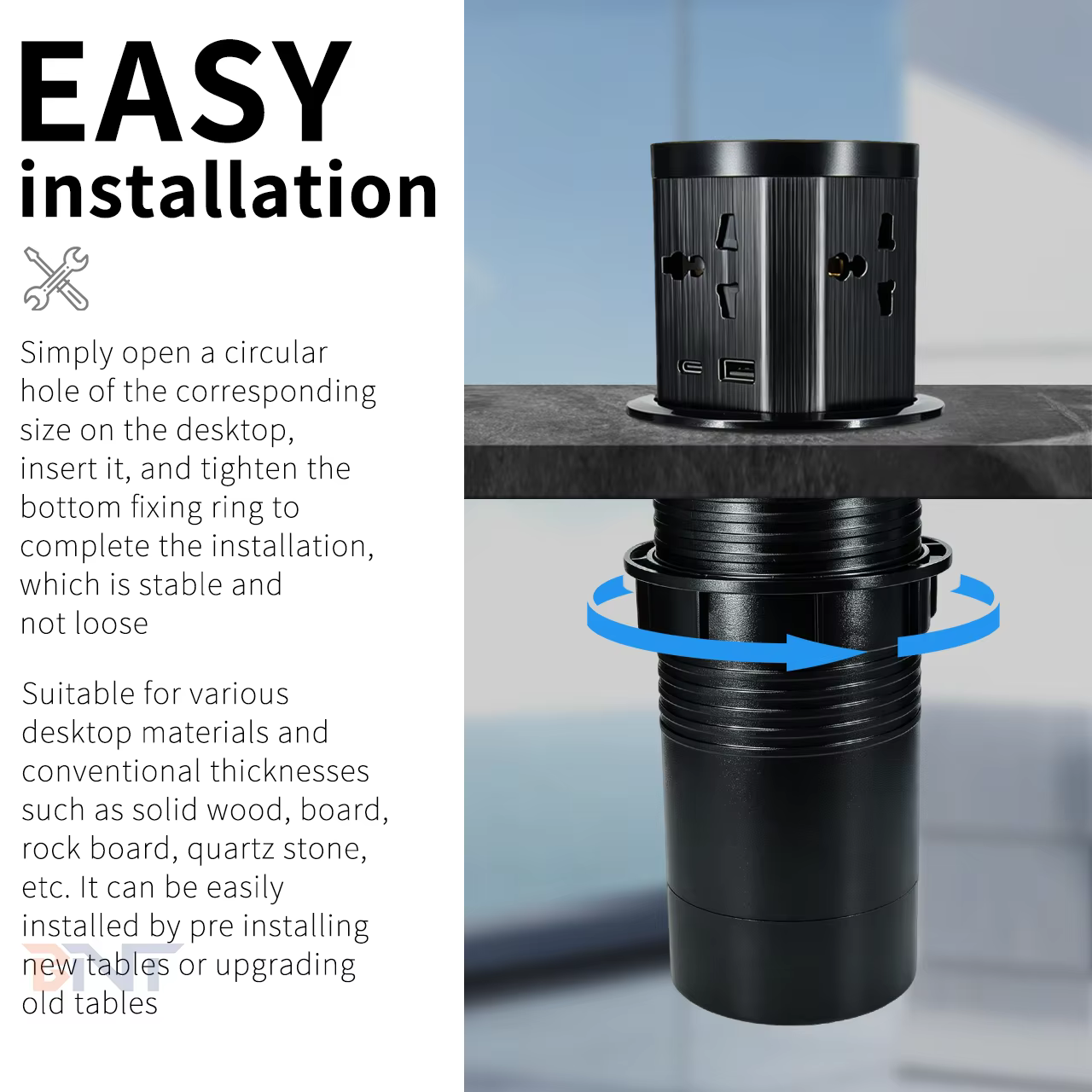

Installation into an 85 mm cut-out

Installation

Cut an 85 mm hole, drop the body in and tighten the clamp ring from below. No separate mounting bracket is needed. The source listing does not state a panel thickness range, so confirm your worktop dimension before ordering.

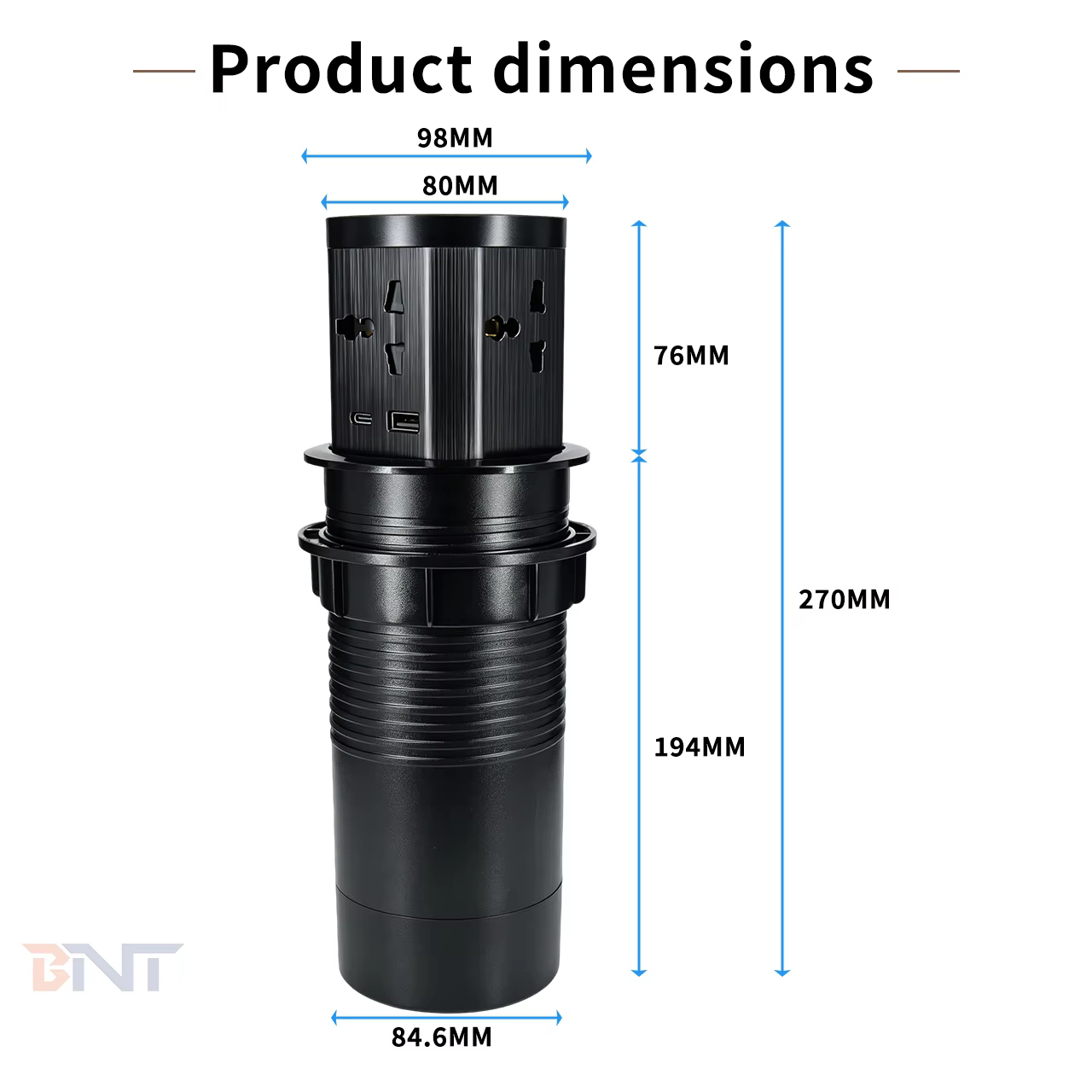

Dimensional drawing of the pop-up socket
