Name: | Electric Desk Monitor Lift with MIC BLM-15.6 |
---|---|
Model No:: | BLM-15.6 |
Type: | Video Conference System |
Item: | Ultra-thin LCD lift with 15.6 inch screen +motorized microphone |
Color: | Aluminum black/silver |
Function: | Presentation |
Material: | Aluminum alloy brushed |
Screen Size: | 15.6 inch Samsung screen (16:9) |
Microphone: | conference system mic |
Panel Size: | 558*88*5mm |
Box Size: | 538*75*605mm |
Cutout Size: | 541*78mm |
Resolution ration: | 1080*1920 |
Interface: | HDMI+RS232 I/O+USB+XRL |
Electric Desk Monitor Lift with MIC BLM-15.6
Keywords: LCD monitor lift, LED monitor lift, monitor lift, motorized monitor lift, LCD motorized lift, LCD screen lift, Conference System, LCD-monitor-lift-with-mic,LCD-monitor-lift-with-microphone, monitor lift, motorized screen,retractable-pop-up-screen, screen lift, motorized MIC
Introduction:
BLM-15.6 is designed as a advance integration hiding equipment of ultra-thin Monitor Lift with 15.6"
screen + motorized microphone for conference audio video system.
15.6, 17.3 inch Full HD LED Screen for selection to meet the requirment of different monitor size.
Controlled conveniently by touch swith or remote control, the screen and mic could be rising up
together form the conference tables automatically throgh the lift driving.
On the other way, they could also be hidden under the table automatically by the users' control.

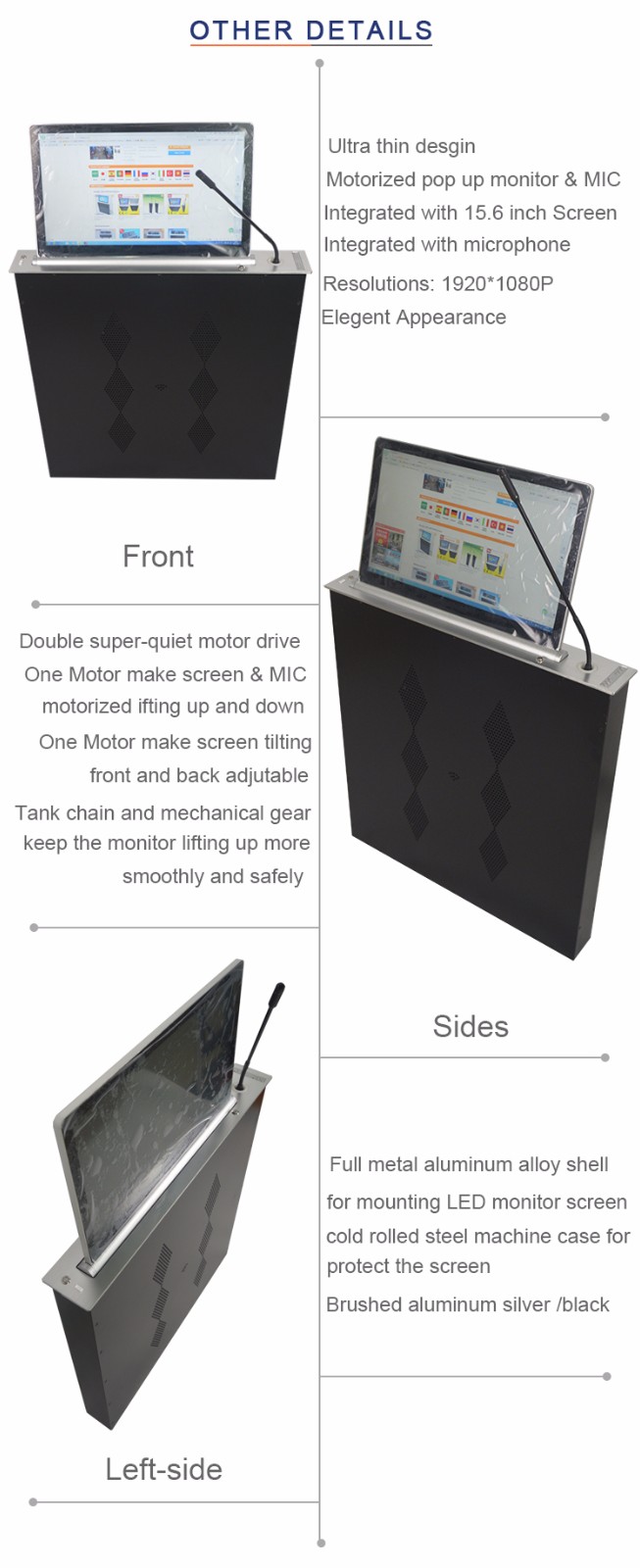

once we finish using. With double super-quite synchrous motor, rasing up and down by tank chain
and mechanical gear, the lift is much smooth and quiet when working.

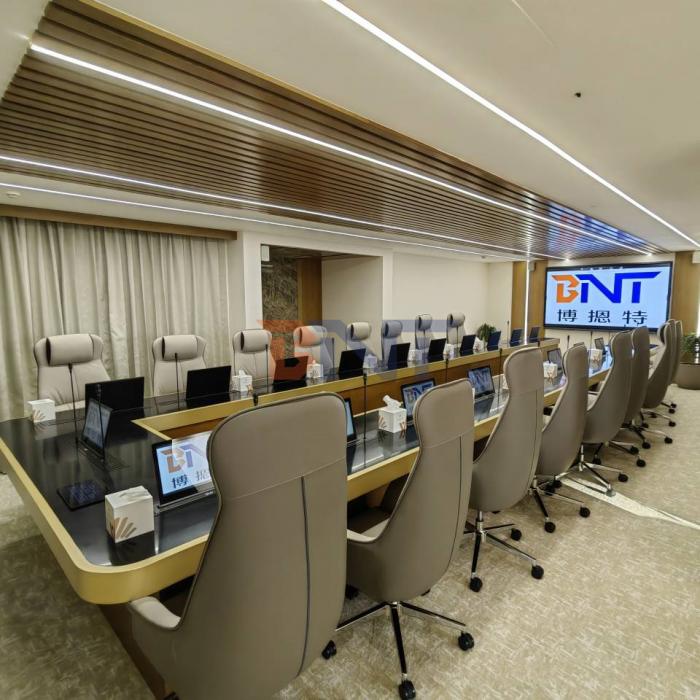

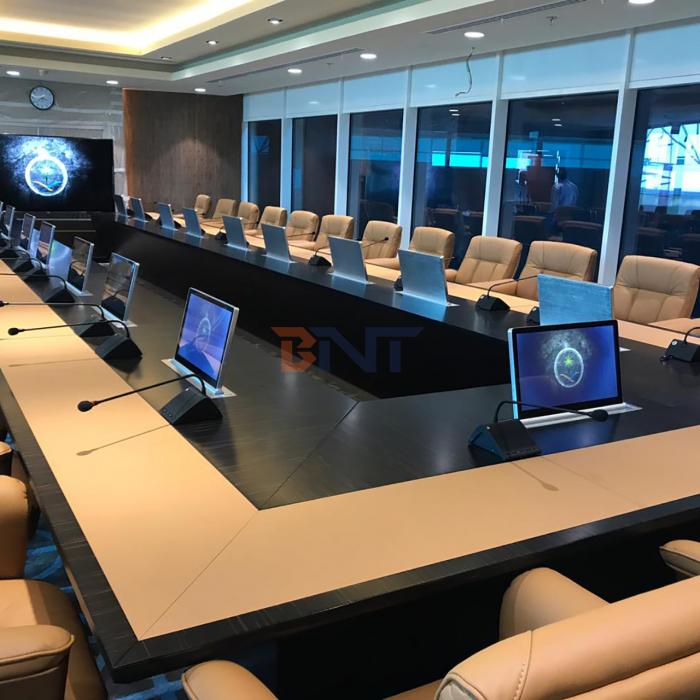

It is widly use in conference system, video conference system, tv conference system, financial analyzing system,
advanced office system,lecture and training room with conference table& computer desk,etc.
Selling Point:
Full aluminum alloy finish, orrosion resistant, wear-resistant,smooth surface and not easy to scratch.
Ultra-thin Design, only 8.8cm width of whole product , with 5mm thickness monitor
Motorized lift with 15.6inch FHQ screen + motorized microphone design, to meet the requirment of user's vision and talking
conference system microphone, can be control independently by button switch
Motorized by tank chain and mechanical gear, good quality and smooth and quiet when working
Full HD LED Screen, high quality and brings a good viewing
Hidden design to save more space and makes a modern office environment
Ultra --thin monitor and lift body, elegant design and save space

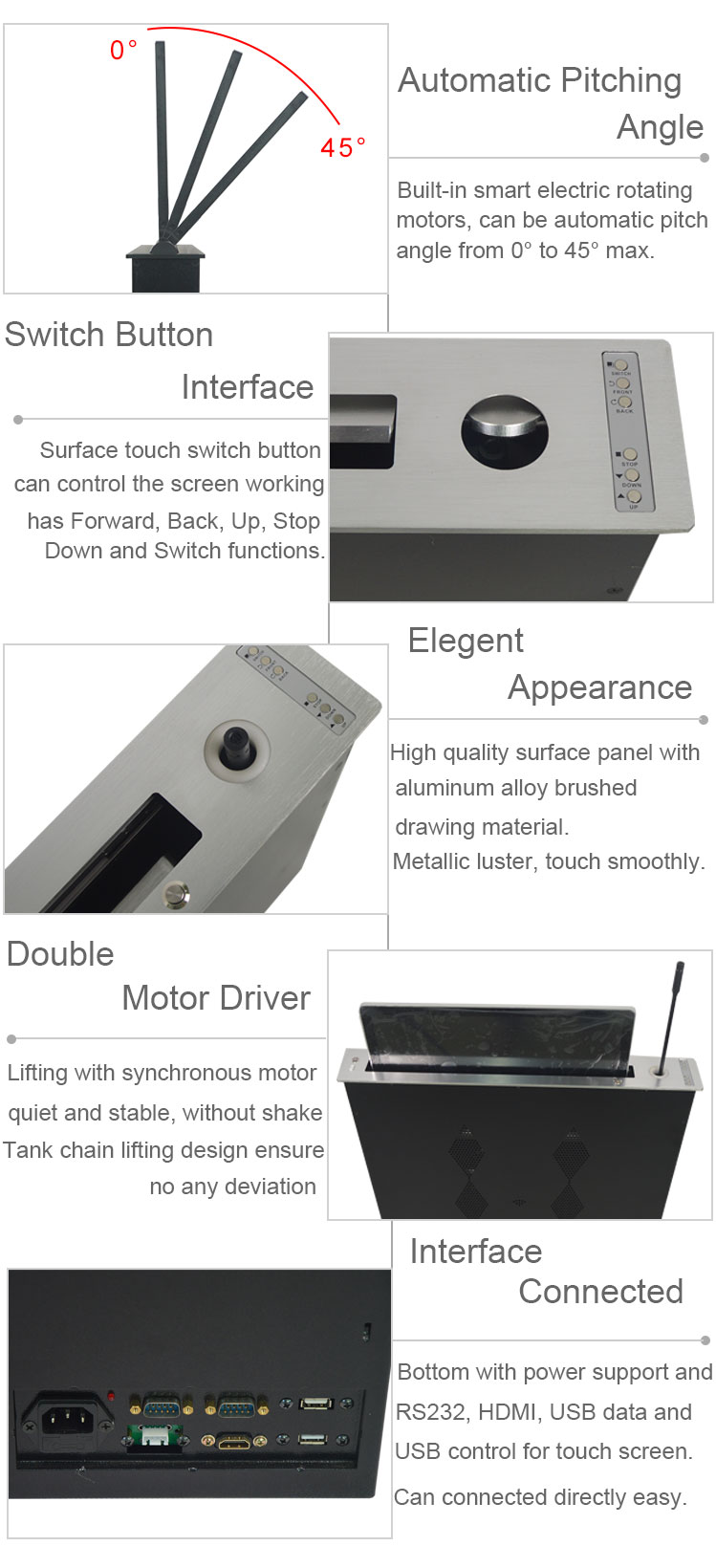

0-45 degree adjustable angle to make prefect viewing angle for users
Virtually Silent working with excellent working life.
works smoothly and quietly. Low noise which less than 30db
with protecting function of LCD monitors by cutting the electricity off automatically
Control system: Touch Switch on LCD motorizedLift panel, RF remote control, RS232 AND rs 485 central control..
Power plug and voltage could be changed according to user's requirment

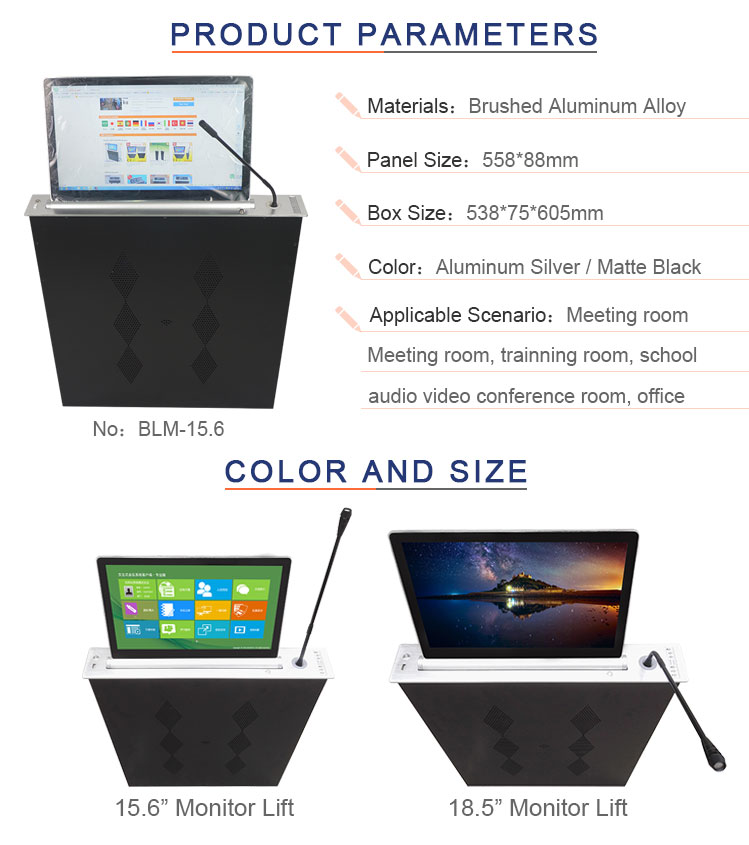

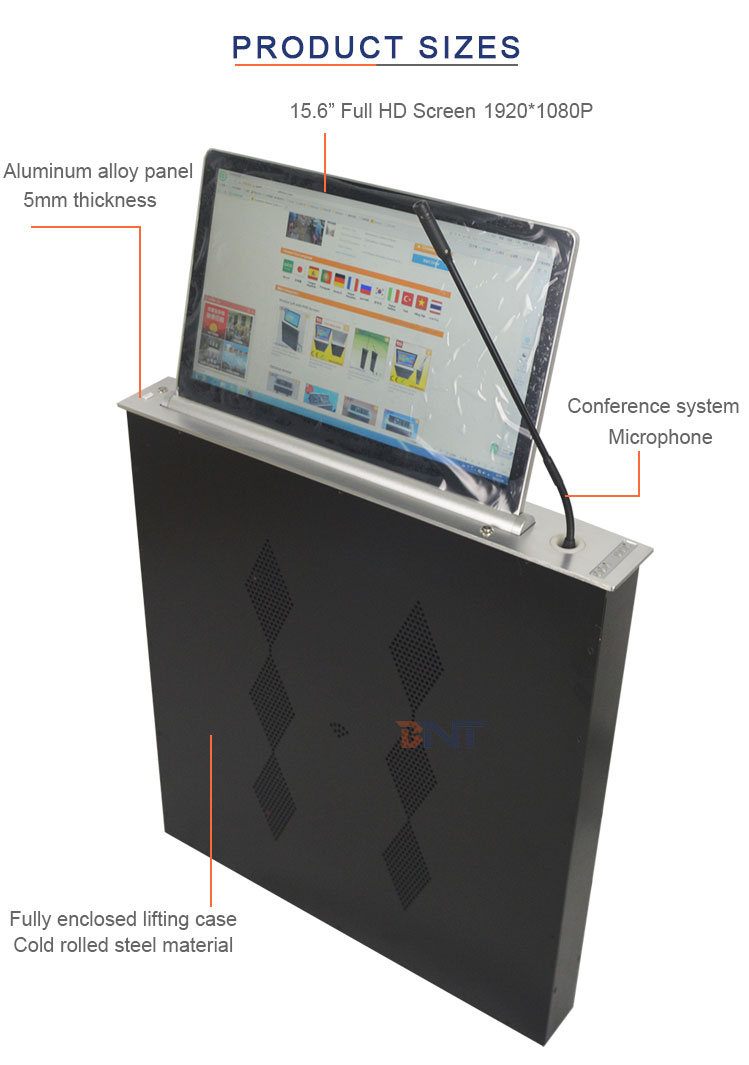

Detail Parameter:
Item Name | Retractable Monitor Lift |
Style | Ultra-thin LCD lift with 15.6inch FHD screen+motorized microphone |
Model No. | BLM-15.6 |
Material | Full aluminum alloy drawing finished |
Color | Aluminum black/silver |
Panel Dimension | 558*88*5mm |
Panel Thickness | 5mm |
Box Size | 538*75*605mm |
Cutout Size | 541*78mm |
Monitor | 15.6 inch Samsung screen (16:9) |
Resolution | 1080*1920 |
Monitor Overturn Angle | 25 degree |
Data Interface | HDMI+RS232 I/O+USB+XRL |
Control System | touch switch, wireless remote , central control RS232 |
Application | High-class office conference meeting room |
Warranty | 1 year |
