BP series desktop socket is designed as an hydraulic pop up socket
Name: | Desktop Socket Without Bottom Case BP419B |
---|---|
Model No:: | BP419B |
Type: | Table Pop up Socket |
Item: | Hydraulic power pop up socket |
Material: | Aluminum alloy |
Color: | Silver/Black |
Stype: | without bottom case |
Configuration: | 1*Universal Power +2*RJ45 Network+1 *VGA+1*3.5 Audio+1* USB +1 *HDMI +1*RCA |
Pop Up Angel: | 45 degree |
Panel Size: | 175*130mm |
Cutout Size: | 152*122mm |
Rated voltage: | 110V ~ 240V AC |
Rated current: | 10 ~ 13 Amp |
Warranty: | 12 months |

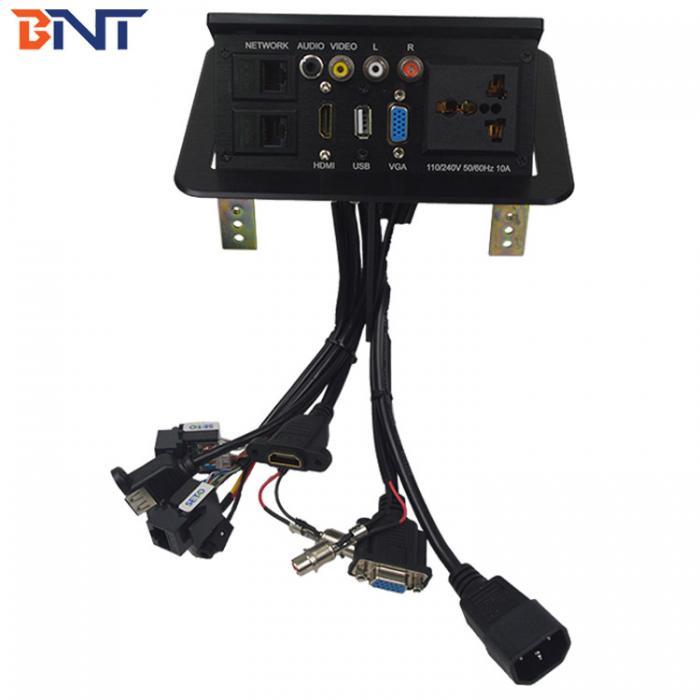

Desktop Socket Without Bottom Case BP419B
Keyword: desktop socket,tabletop socket, desk socket, table socket,cable cubby, desktop power plug, office- tablet- socket,socket box, pop-up-socket, table outlet, conference system, audio video system, conference-table-socket
Introduction:
BP419B desktop socket is designed as an hydraulic pop up socket with muti-functional configuration,
it is a hidden equipment as it is mounted into the table to use and hidden on tabletop when it is not be used.
With the liquid spring,the socket could be poped up automatically by pressure.

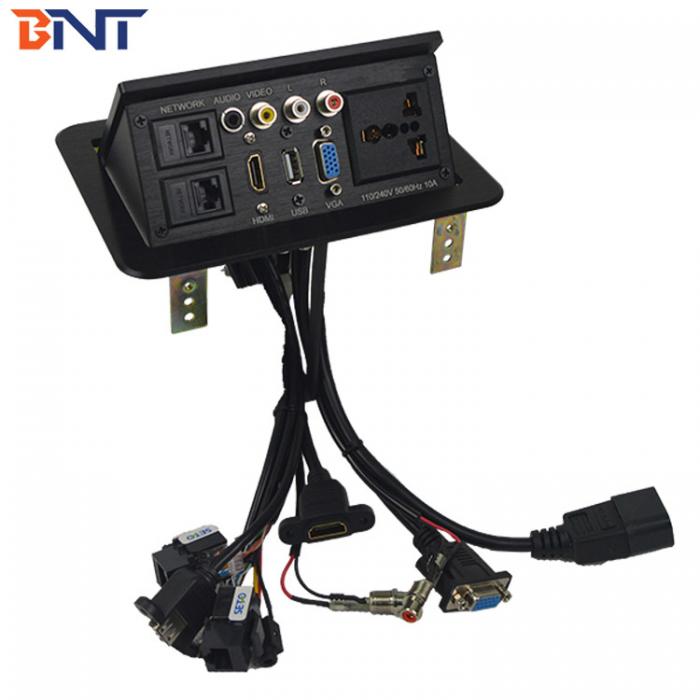

Once press the top panel, the socket will be pop up with 45 degree angle,the users can connect the socket and
other connector easily, On the other way, when finish using, press the top panel to make the panel flush with the desktop.

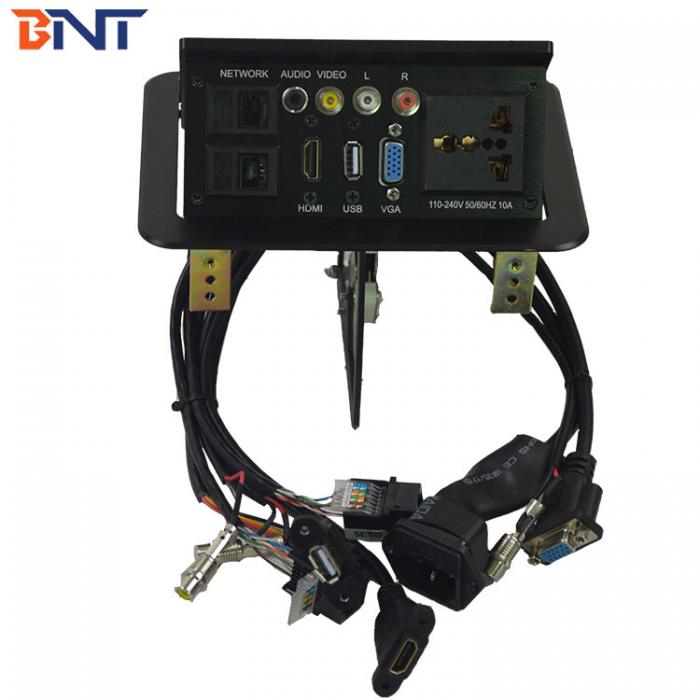

Come out with related wires and without the bottom case, save the space and convient to connect the equipments,
no need to welding by the users themselves.
The configuration of socket is changeable with different moduls for different application and requirment.
It’s widely used for the office furniture, high-tier office table, conference room table AV solution, multimedia classroom,
hotel room and training room, ect.
Seiling Piont:
1. Hidden design to save more space and makes a modern office environment
2. Competitive price and high quality, sliver/black color is available
3. Good quality aluminum alloy material, which is corrosion resistant, wear-resistant,smooth surface and not easy to scratch.
5. The modules can be customized to fit the defferent requirement of the users
6. Power plug and voltage could be changed accordingly
7. Come out with related wires, no need to welding by the users themselves

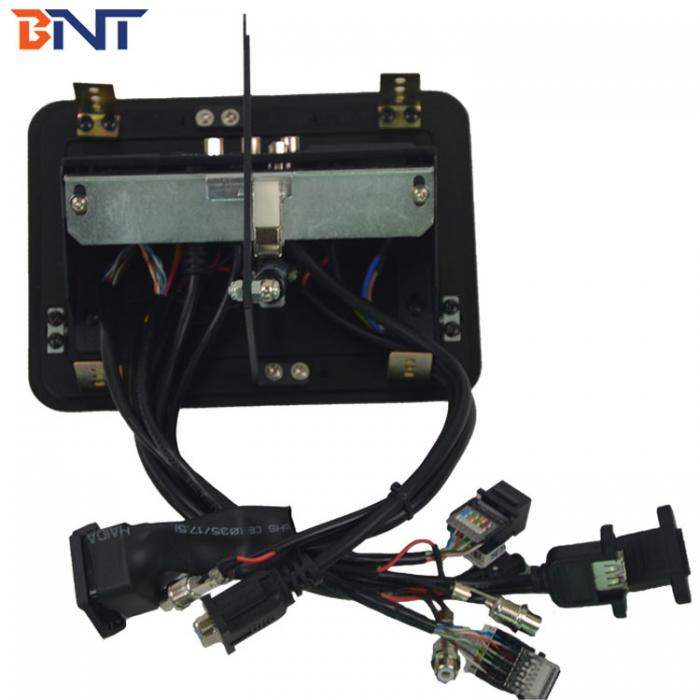

8. without bottom case design
9. Easy installation, just cut out a square hole on the table and install the socket accordingly.
10. with bottom case or without bottom case is optional for the users
11. CE approval
How to install and operation:
1. Cut out a properly square hole on the table;
2. Put the socket into the square hole, the connction cable hidden under the table;
3. Press the panel to expose the socket and connect the plugs and connectors directly
Detail Parameter:
Model No. | BP419B |
Type | Table Pop up Socket |
Style | Hydraulic power pop up socket |
Material | Aluminum alloy |
Color | Silver/Black |
Configuration | 1*Universal Power +2*RJ45 Network+1* VGA+1*3.5 Audio+1* USB +1* HDMI +1*RCA |
Pop up angle | 45 degree |
Panel size | 175*130mm |
Cutout size | 152*122mm |
Rated voltage | 110V ~ 240V AC |
Rated current | 10 ~ 13 Amp |
Warranty | 12 month |
