BP series desktop socket is designed as an hydraulic pop up socket
Name: | Gas pop up electrical table socket BP980 |
---|---|
Model No:: | BP980 |
Type: | Table Pop up Socket |
Item: | Hydraulic power pop up socket |
Material: | Aluminum alloy |
Color: | Silver/Black |
Pop Up Angel: | 45 degree |
Configuration: | 2*Universal Power + 2*Network +2*USB Changer+1 *VGA +1*3.5 Audio +1*HDMI |
Panel Size: | 265*130mm |
Box Size: | 252*120*143mm |
Cutout Size: | 254*122mm |
Rated voltage: | 110V ~ 240V AC |
Rated current: | 10 ~ 13 Amp |
Warranty: | 12 months |

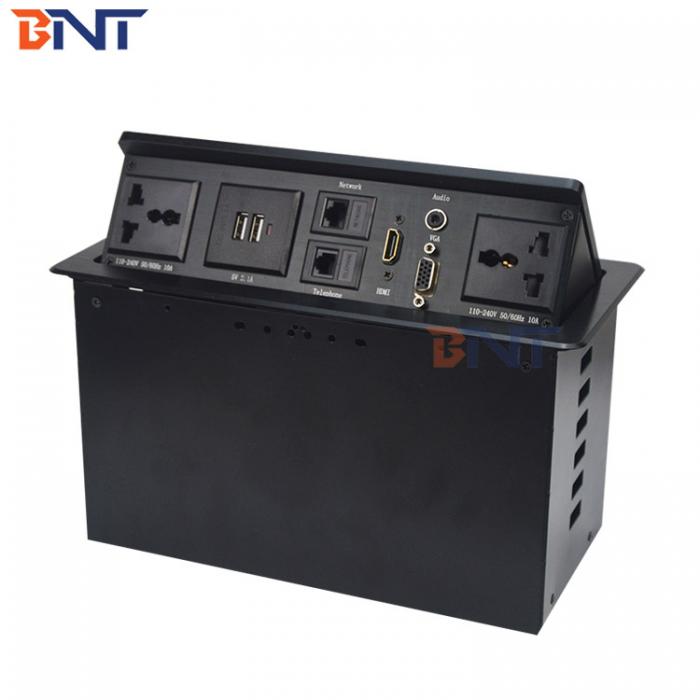

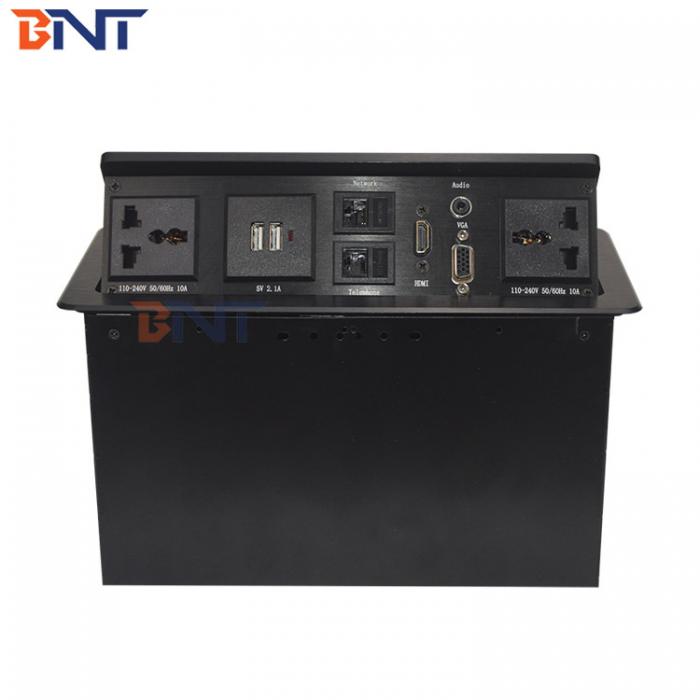

Gas pop up electrical table socket BP980
Keywords: desktop socket, tabletop socket, pop up socket, pop up power plug, pop up connector, pop up box, conference table socket, office furniture outlet, desktop power data outlet, desktop outlet, table socket, desk socket, desktop power outlet,Pop up box, Gas support Type Desktop socket
Introduction:
BP series desktop socket is designed as an hydraulic pop up socket with muti-functional configuration,
it is a hidden equipment as it is mounted into the table to use and hidden on tabletop when it is not be used.
With the liquid spring,the socket could be poped up automatically by pressure.

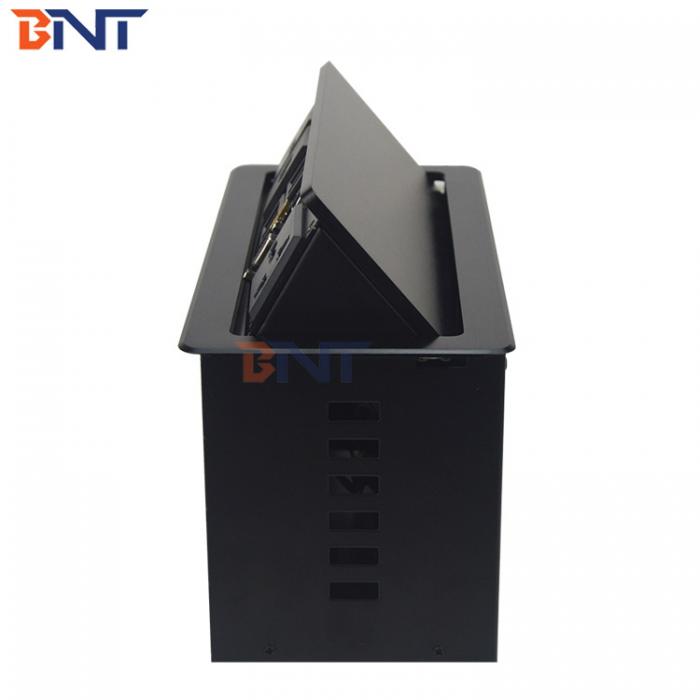

Once press the top panel, the socket will be pop up with 45 degree angle,the users can connect the socket and other connector easily,
On the other way, when finish using, press the top panel to make the panel flush with the desktop.

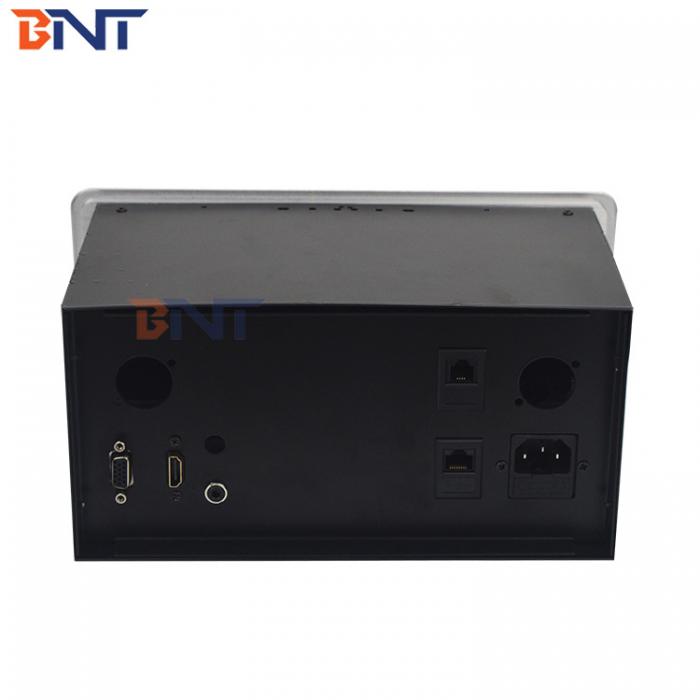

Besides, the bottom of BP serious is already connect with wire and the connector is design to flush with the panel of bottom,
no need to welding by the users themselves.
The configuration of socket is changeable with different moduls for different application and requirment.
It’s widely used for the office furniture, high-tier office table, conference room table AV solution, multimedia classroom,hotel room and training room, ect.
Seiling Piont:
1. Hidden design to save more space and makes a modern office environment
2. Competitive price and high quality, sliver/black color is available
3. Good quality aluminum alloy material, which is corrosion resistant, wear-resistant,smooth surface and not easy to scratch.
5. The modules can be customized to fit the defferent requirement of the users
6. Power plug and voltage could be changed accordingly
7. Had connect the wire and connector, no need to welding by the users themselves
8. The bottom connectors are flush with the bottom panel, more convenient to use
8. Easy installation, just cut out a square hole on the table and install the socket accordingly.
9. with bottom case or without bottom case is optional for the users
10. CE approval

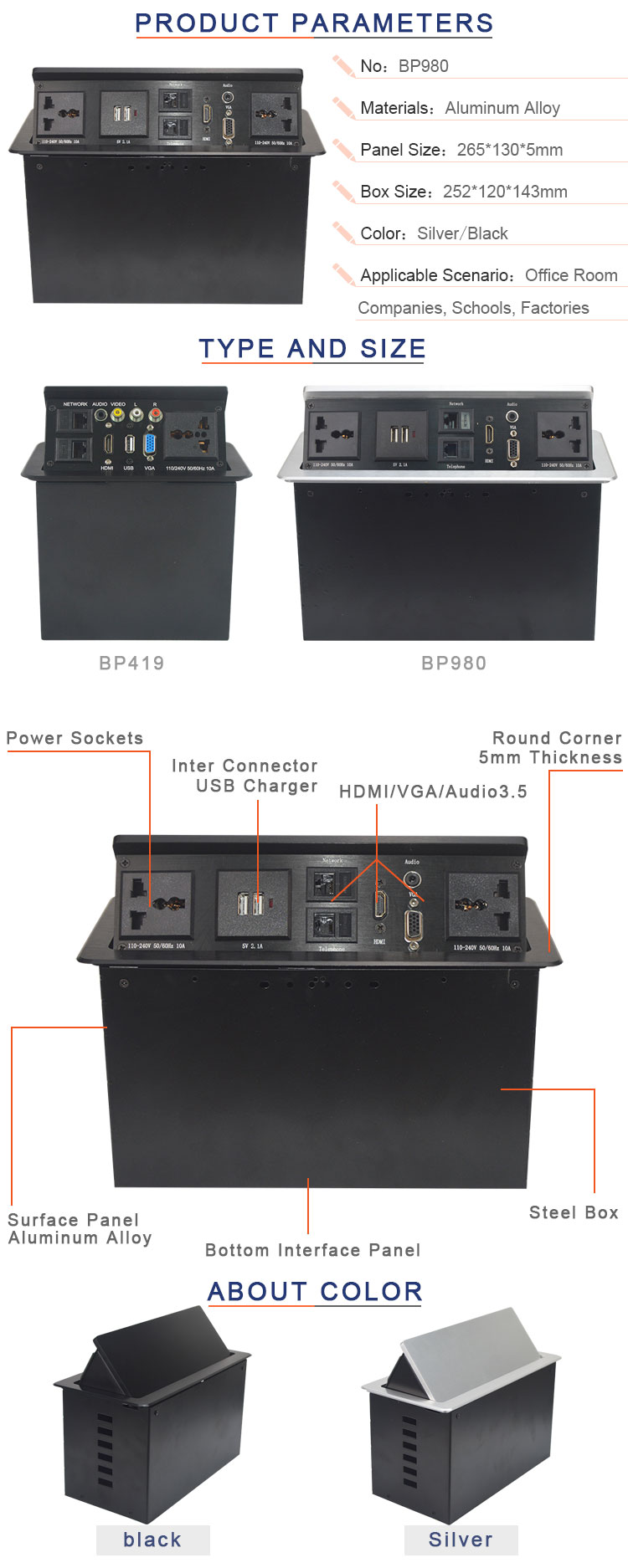

Detail Parameter:
Model No. | BP980 |
Type | Table Pop up Socket |
Style | Hydraulic power pop up socket |
Material | Aluminum alloy |
Color | Silver/Black |
Configuration | 2*Universal Power + 2*Network +2*USB Changer+1* VGA +1*3.5 Audio +1*HDMI |
Pop up angle | 45 degree |
Panel size | 265*130mm |
Box Size | 252*120*143mm |
Cutout size | 254*122mm |
Rated voltage | 110V ~ 240V AC |
Rated current | 10 ~ 13 Amp |
Warranty | 12 month |
