Product Center

  • Home Office Desk Power Track System Electric Socket Outlet
  • Home Office Desk Power Track System Electric Socket Outlet
  • Home Office Desk Power Track System Electric Socket Outlet
  • Home Office Desk Power Track System Electric Socket Outlet
Name:Home Office Desk Power Track System Electric Socket Outlet
Color:Black/ Silver /Gold/White
Material:Aluminum Alloy
Warranty:1 Year
Rated Voltage:110-250V
Rated Current:10-16A
Product name:Power track socket
Application:Commercial, office/hotel/home/market
Model Number:TPS100
Type:Wall Socket
Panel Size:0.6m 0.8m,1.0m 1.2m
Certification:CE/ROHS

Product Description

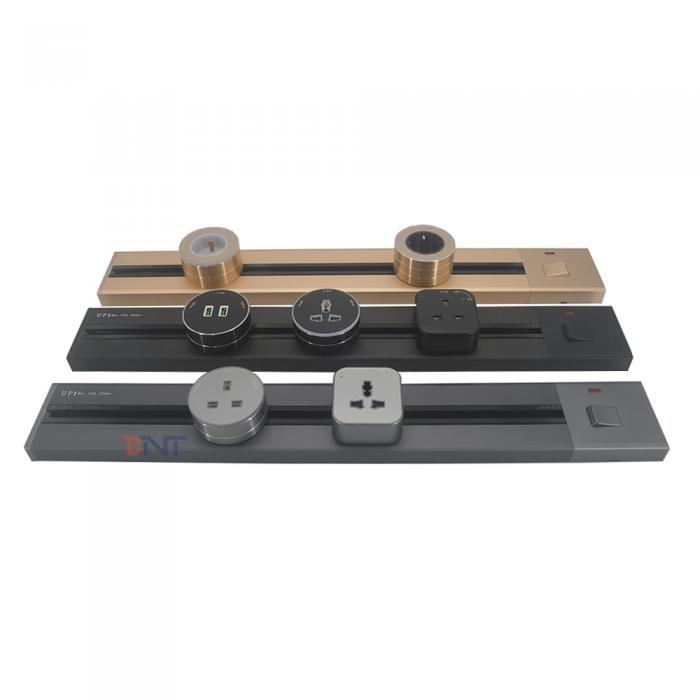

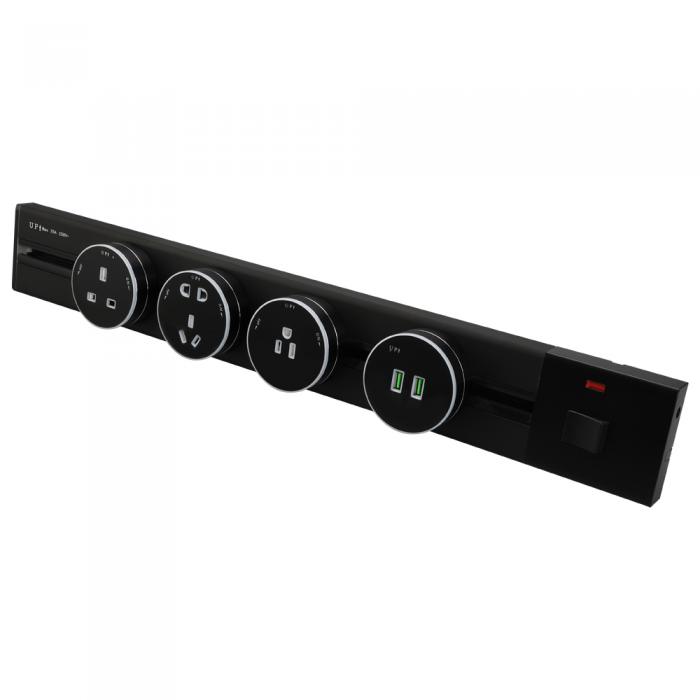

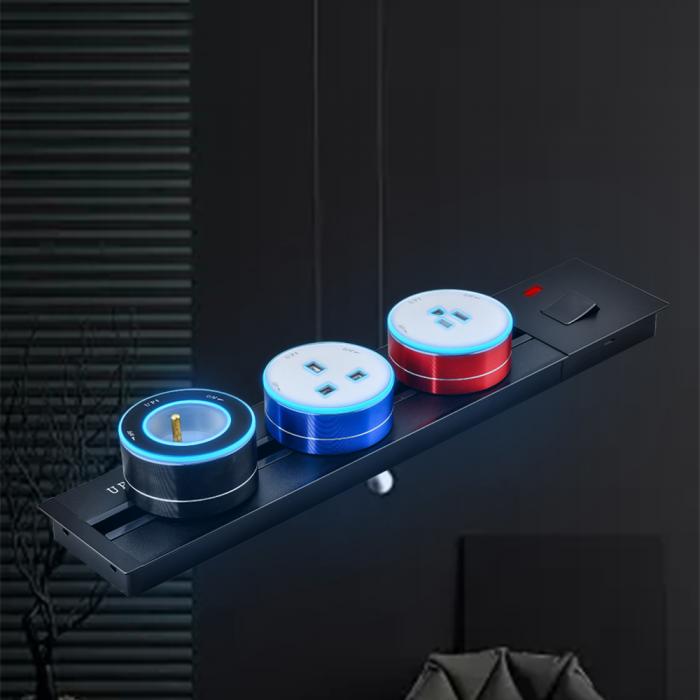

Home Office Desk Power Track System Electric Socket Outlet


Introduction:


What is a track socket? Are track sockets safe? How to install the track socket? Some of the socket is not suitable to replace more trouble! The rise of the track socket has completed the incomparable function of the old socket: the socket is sensitive dragging, dealing with the problem of too short electrical power cord; The socket is not good or the socket is not good, you can add the adapter at will, without the device; Track and wall or home integration, more show high-end temperament.


Selling Piont:

  1. flexible configuration.The number of traditional socket installation is determined and cannot be changed. Later, it is found that the number of socket is not enough, and it can only be solved by the plug board, which is ugly and troublesome.But! With the track socket, you just need to install the socket module on the track. Use the plug board? It doesn't exist. In addition, the track socket can be customized according to the needs of the length, is also a very intimate design.

  2. The sockets on the rails are removable.Often we encounter is the socket design location is not reasonable, resulting in electrical appliances with insufficient wire length is very embarrassing. Had track socket, can adjust the position of socket at will, need not worry about power supply line to grow not enough again.

  3.  practical and convenient, more safe. Track socket, can be adapted to a variety of different types of socket, only need to plug the socket into the track, clockwise rotation of 90°, LED light, it means power, can be used. When not in use, turn it counterclockwise and the socket will be cut off and the LED lights will go out.

  4. The Carrying Capacity Is Equivalent to the Traditional Socket .Although the track type socket is small, but its carrying capacity has not been reduced. And the track type socket has a specially prepared USB interface, not because there is no suitable charger head can not charge the electricity, if the charger head slope is different, only need to increase this kind of jack on the mobile track, the problem is easily solved.

  5. High level of appearanceTrack socket is installed in the home, solved the electricity problem of much electrical appliances, appearance level is tall, suit to install wall of setting of sitting room TV, bedroom, study, kitchen, balcony, it is the ideal choice that bridal chamber decorates.

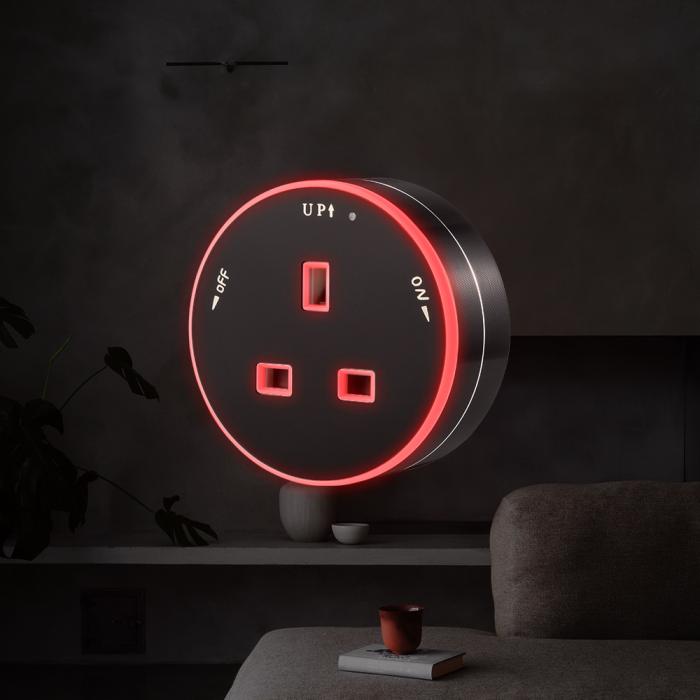

Socket For Track Power Socket
ShapeSqaure TypeRound Type
Size6.8*6.3*3.3cm7*7*3.3cm
Materialplastic shellaluminum frame
Voltage110-250V110-250V
Load Power2500W (light power 1W)2500W (light power 1W)
Frequency50/60Hz50/60Hz
Colorblack/silver/gray/glodblack/silver/gray/glod
LightingNOYes/No

BrandBNT
Product NamePower Track socket
MaterialAluminium Alloy
ColorBlack/Gold/Gray/Silver
Max. Load8000W
Max. VoltageAC 110V-250V
Max. Current32A
Track Size Optional60/80/100/120/150/200/250 cm
ProtectionIP22
Track Width8cm
GroundingStandard Grounding
Power optionCN/UK /US/EU/FR/South Africa/Brazil
Function Socket optionSpeaker/ Wireless charging/Double USB socket
Lighiting optionLED indicate light/ Human indicate footlight
Type of installationEmbedded/Surface
Mechanical Life≥100000
Related Voltage110-250V
Input frequency50HZ~60HZ


Track Length SizeInstallation Socket Qty
60cm4-6pcs
80cm6-8pcs
100cm8-10pcs
120cm10-12pcs
150cm12-14pcs
200cm14-16pcs
250cm16-18pcs
300cm18-20pcs
